Krupp KMK3045 - Gru-Lux

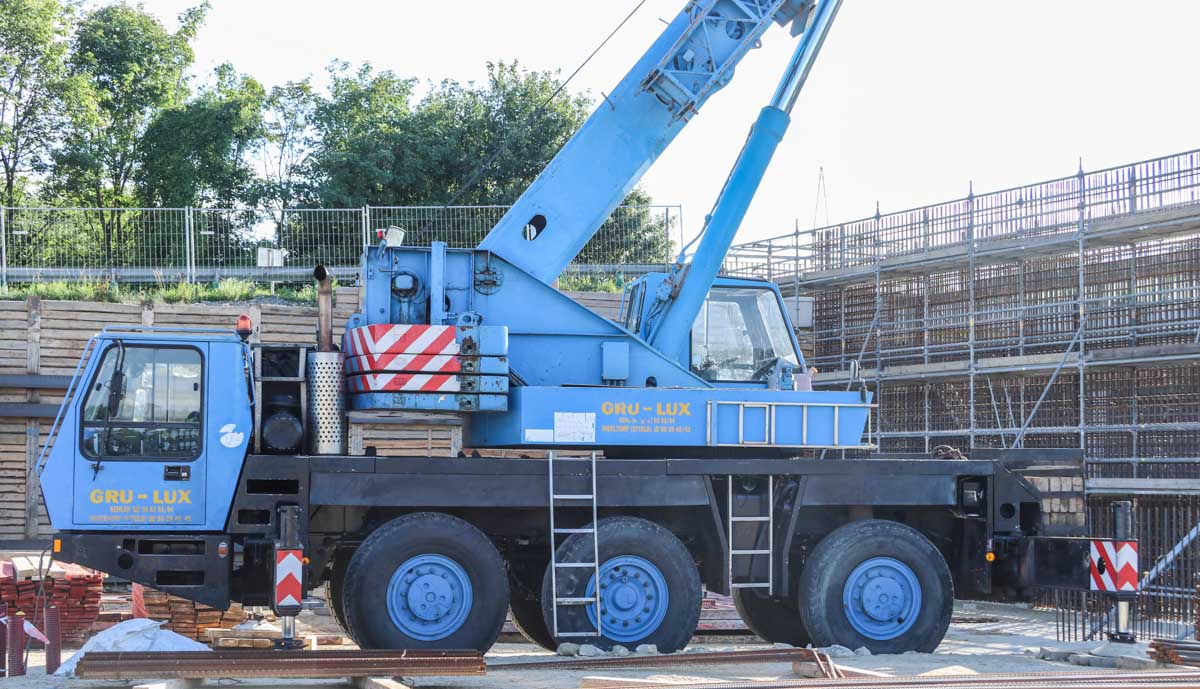

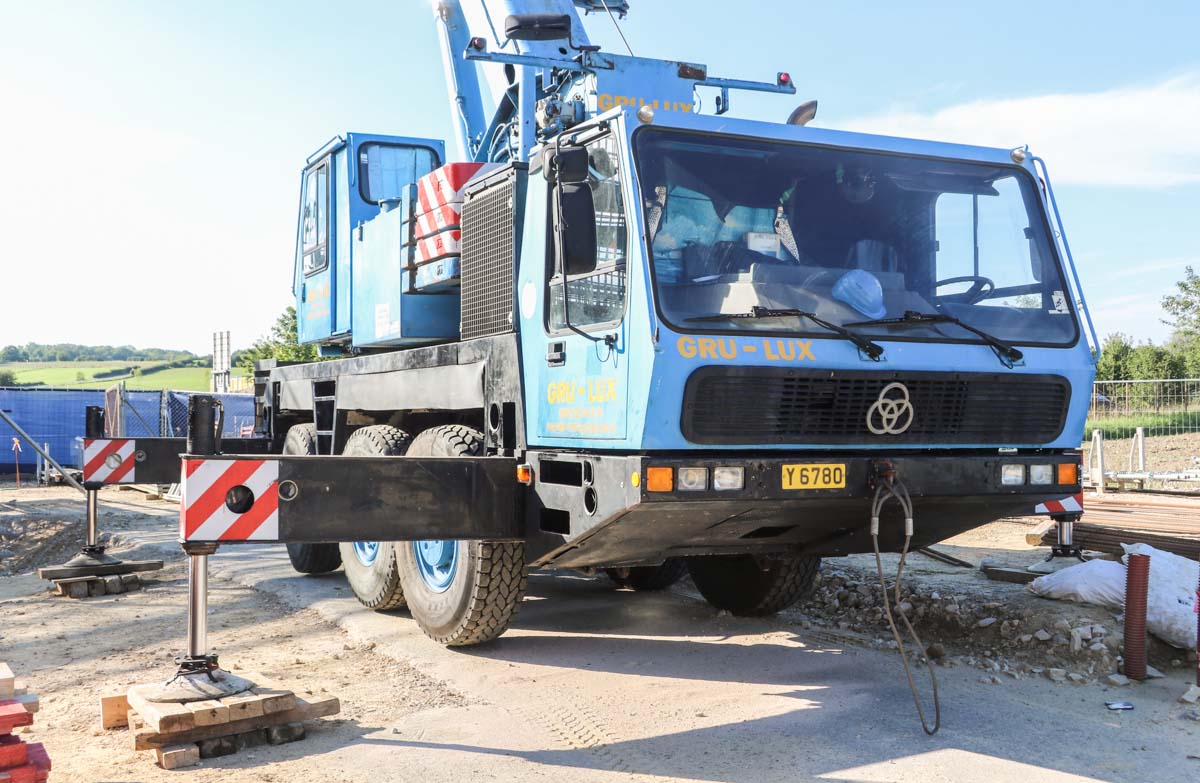

Gru-Lux from Ingeldorf (LU) was using this sharp Krupp KMK3045 for construction works on a new viaduct in Luxembourg.

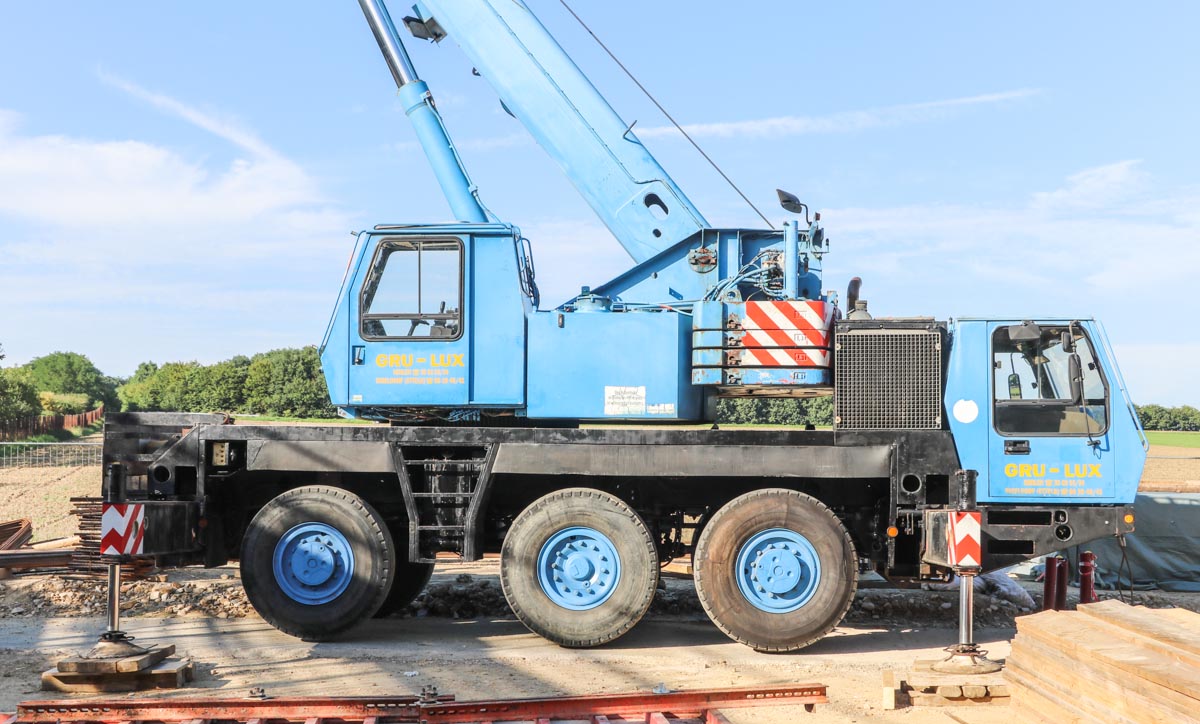

It is a 45-tonne crane installed on a 3-axle undercarriage. The crane's year of manufacture is 1992.

In transport mode is the crane 11.55 meters long, 2.5 meters wide and 3.65 meters high. The transport mass including 9.6 tonnes of counterweight is around 36 tonnes.

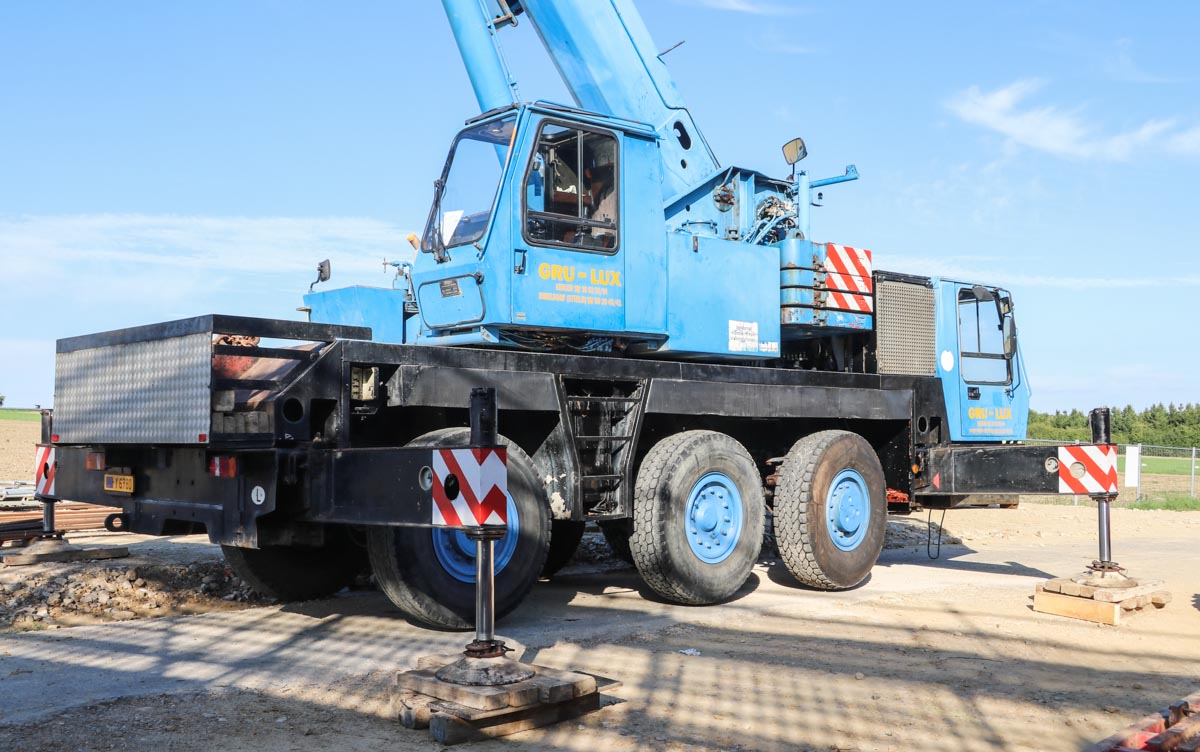

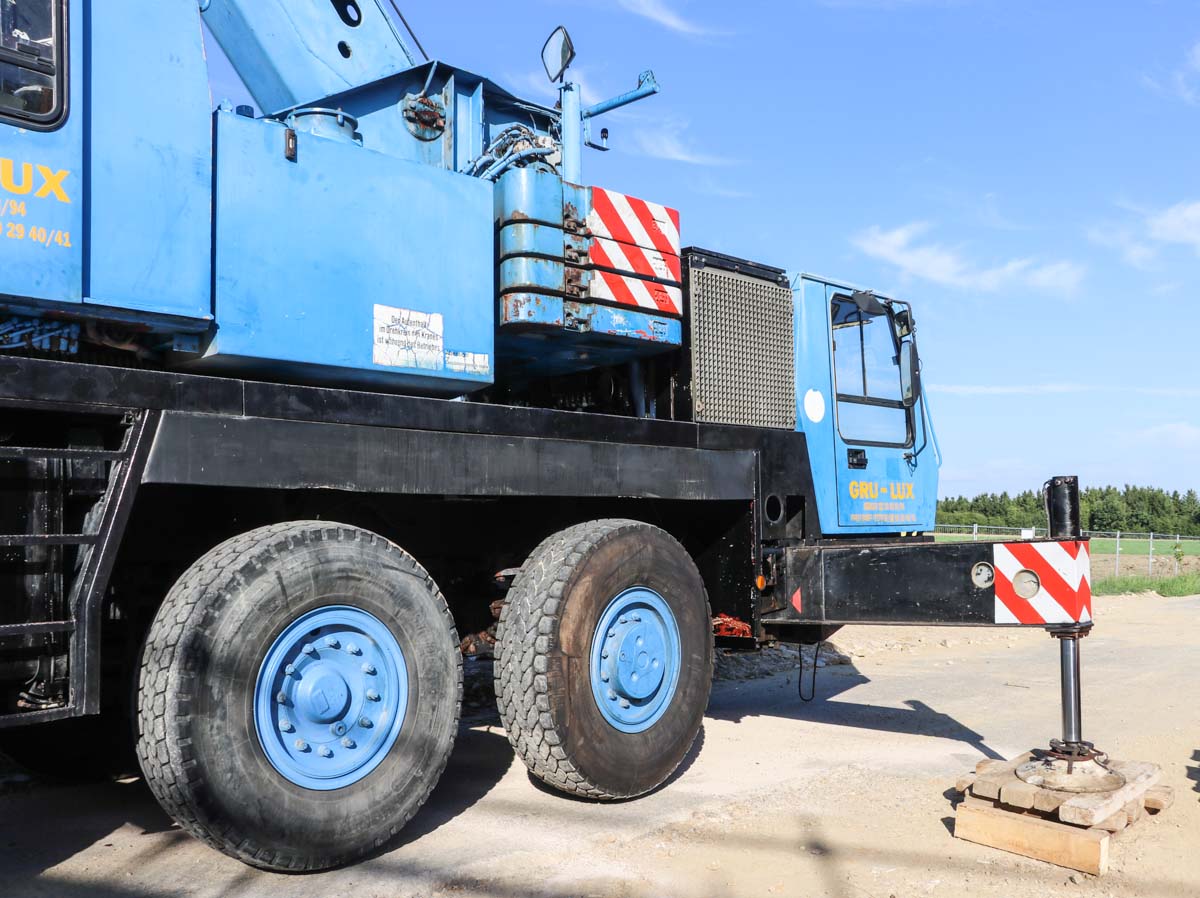

The outrigger base measures 6.35 x 5.7 meters. To power the crane is a Mercedes-Benz OM 442, an 8-cylinder diesel engine with a power of 221 kW (300 hp), responsible. This crane has the axles 1 and 3 powered, all axles are steerable.

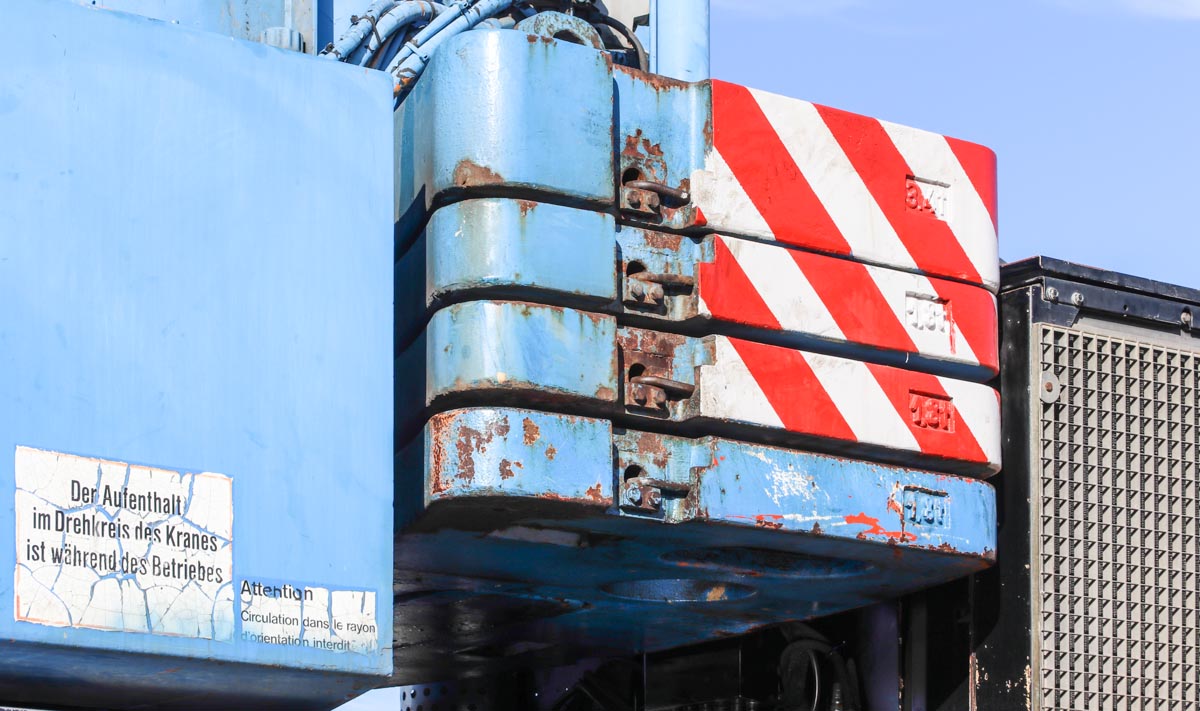

The crane has in total 9.6 tonnes of counterweight with a tailswing of 3.24 meters.

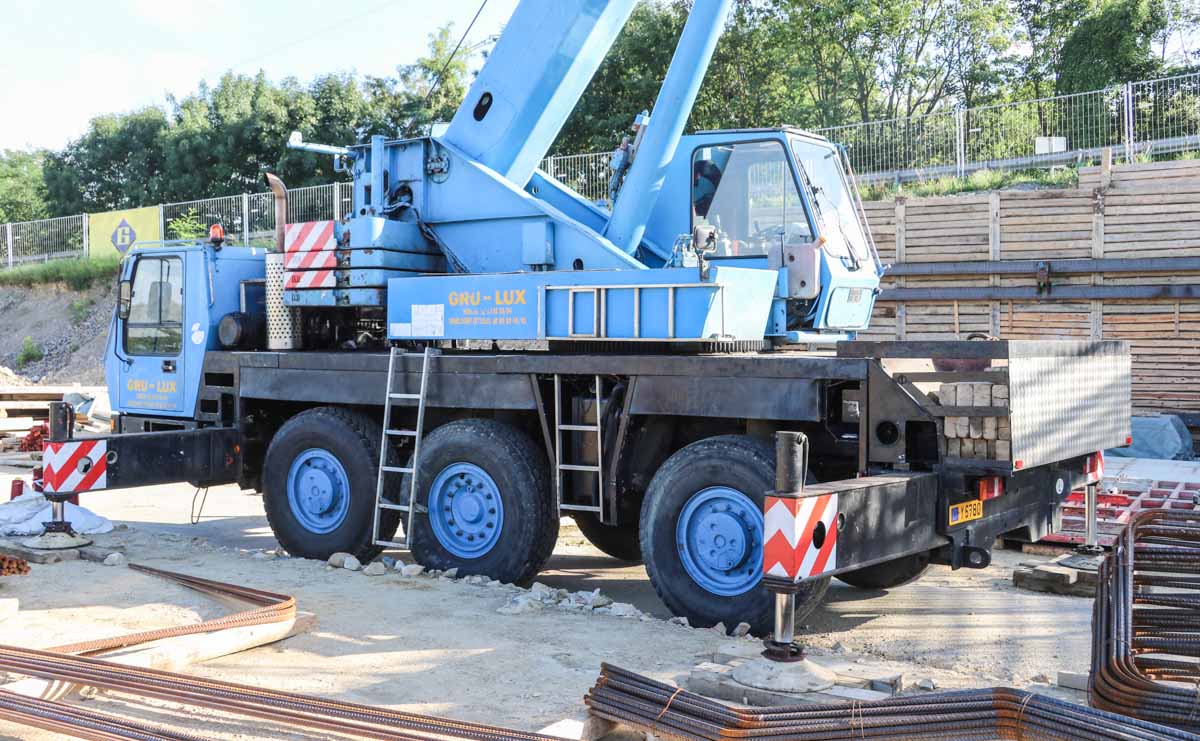

At the rear of the undercarriage is a large box for the wooden beams and some lifting gear made.

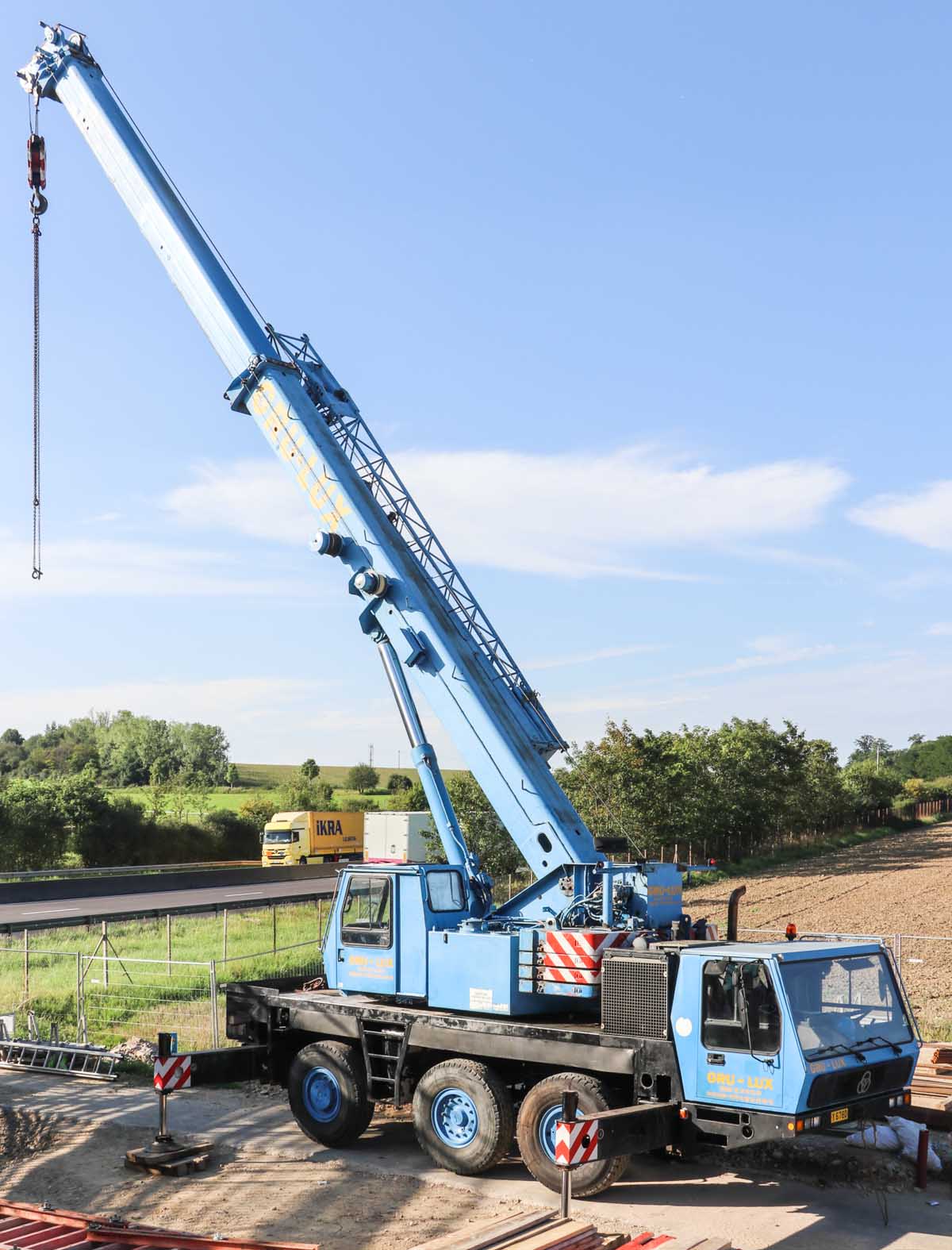

The main boom has a 10.1 meter base length and extends three times to a maximum length of 32.1 meters. The folding jib is 8 / 13 meters long and is under 0 or 16 degrees mountable.
