Fuwa QUY90C - Zwagerman VMT

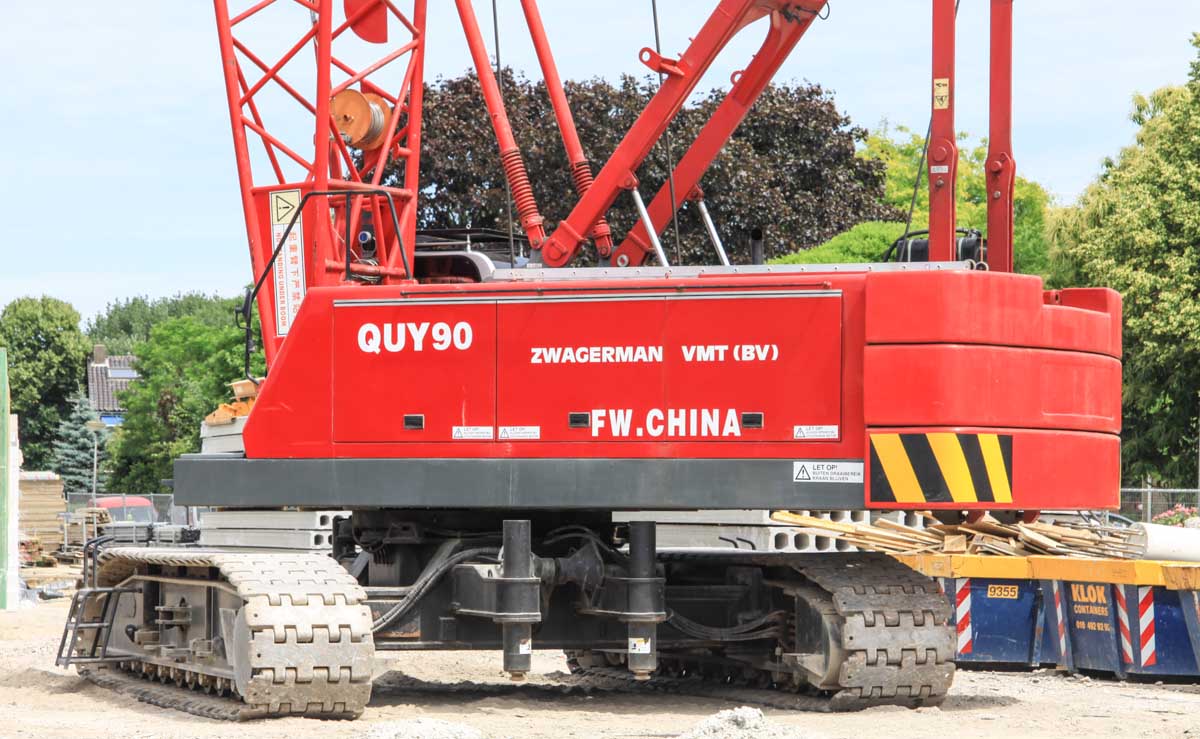

A Fuwa QUY90C of Zwagerman VMT from Nederhorst den Berg (NL). It is a 90 tonne crane with year of manufacture 2008.

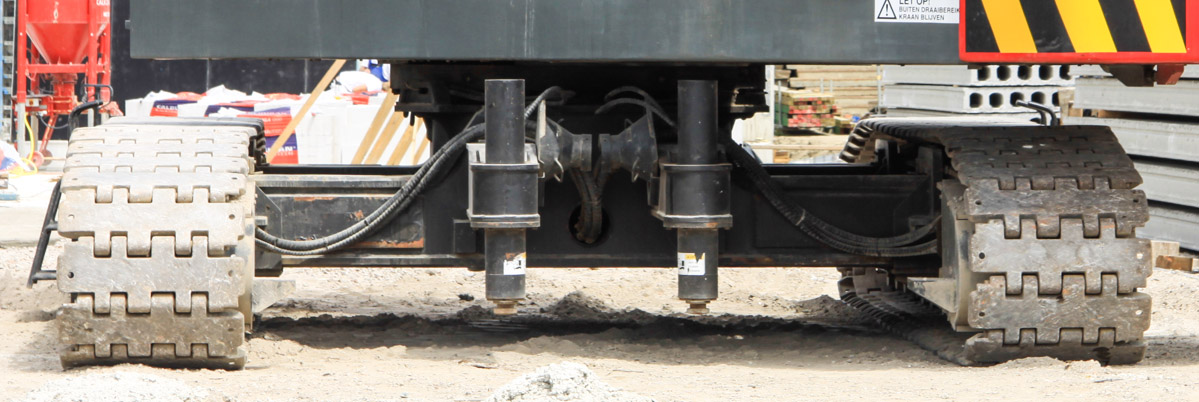

The crane's undercarriage is 6 meters long and 5,1 meters wide. The crawlers are 0.86 meters wide. The outriggers are used to unload the undercarriege so the tracks can be adjusted in breadth.

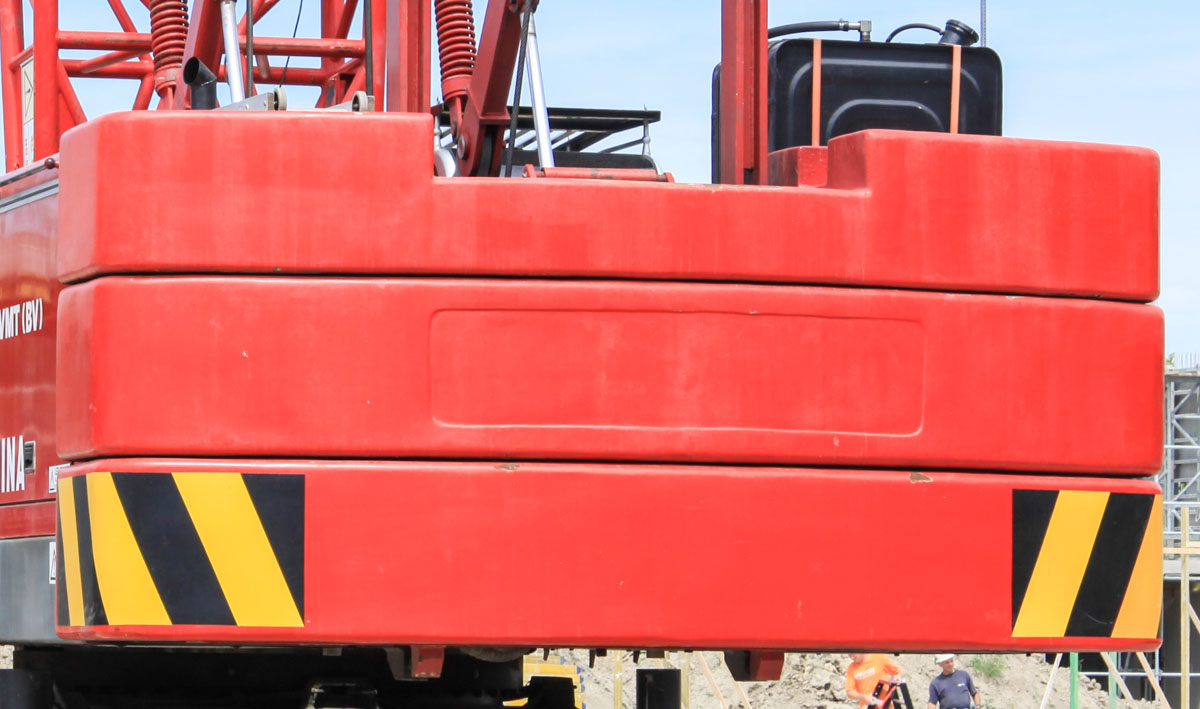

The three-part counterweight weights 26.2 tonnes and has a 4.8 meter tailswing.

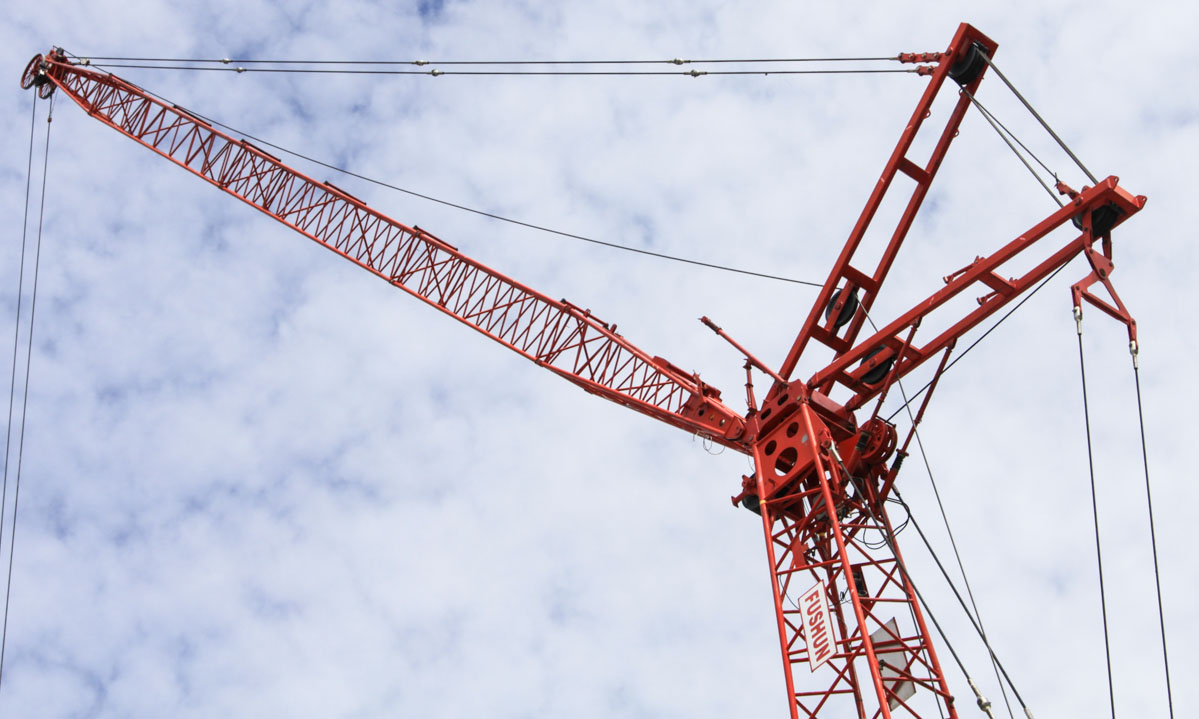

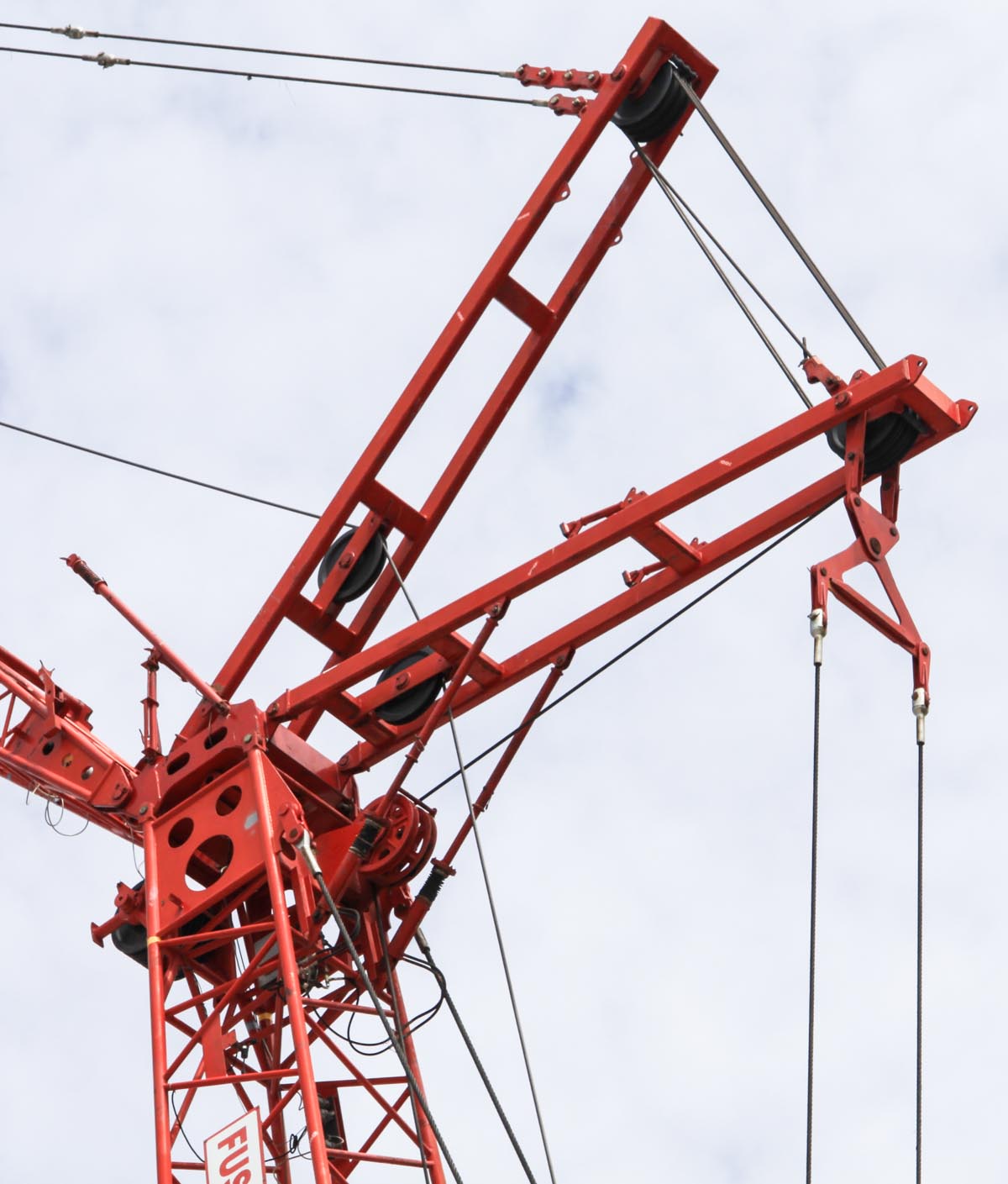

The luffing jib has a 21 meter base length and a maximum length of 39 meters. The crane is used here with a 36 meter luffing jib.

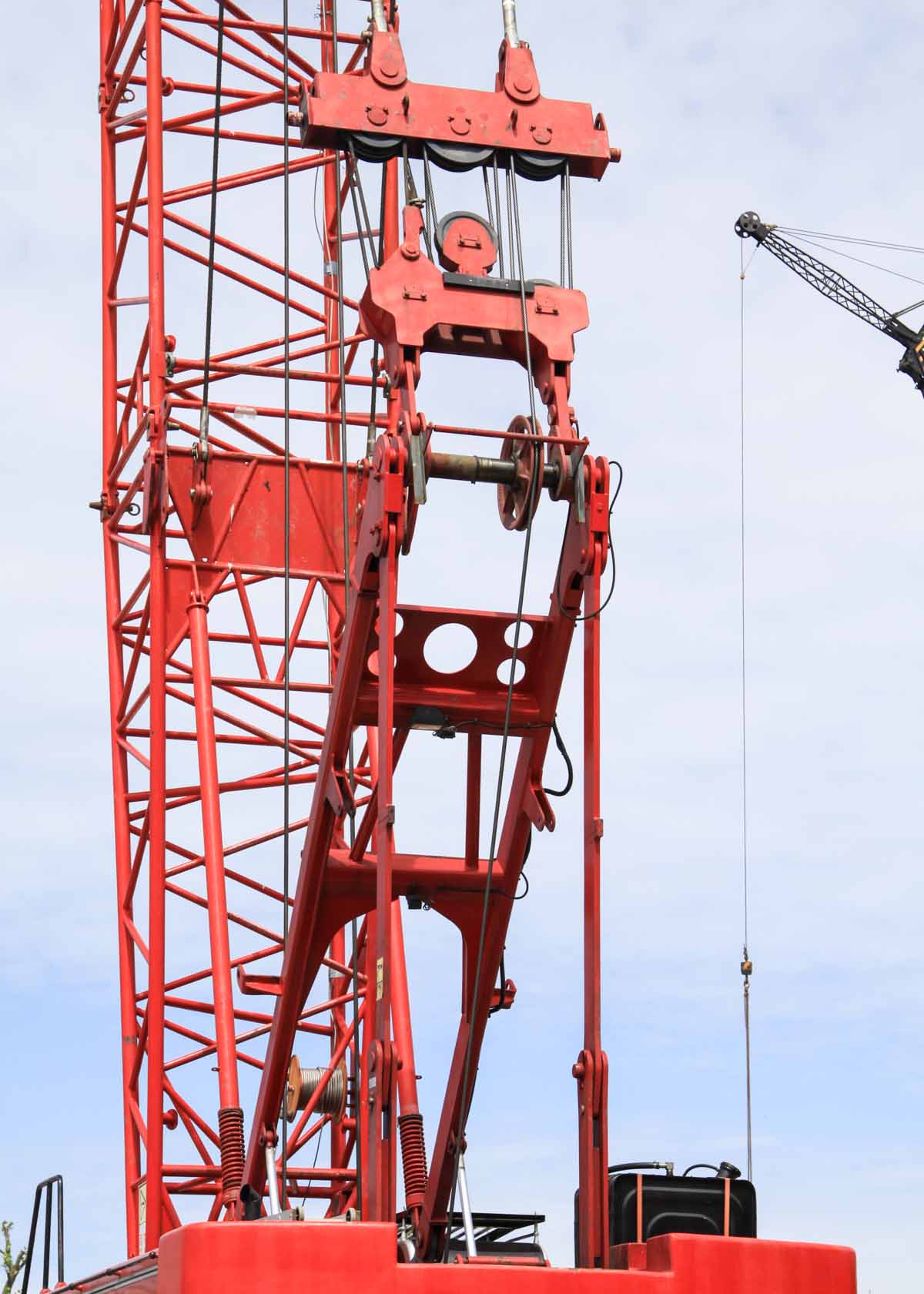

The crane is powered by a Cumming QSL-9 engine. The A-frame has a total height of 7.1 meters.

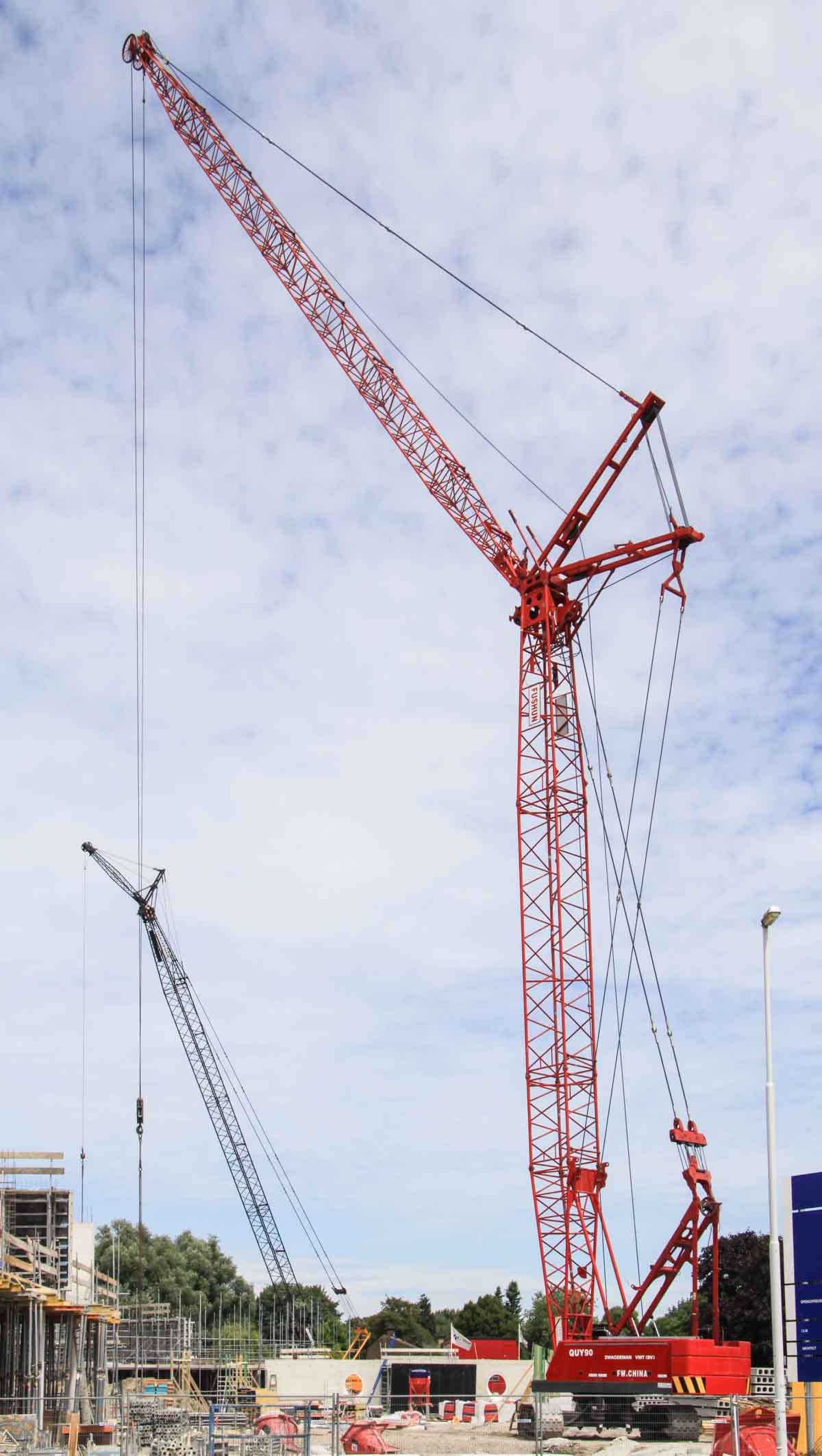

The crane is erected here with a 25.8 meter main boom with a 36 meter luffing jib. The crane in the background is a Zoomlion QUY70 crawler crane, also of Zwagerman VMT.
