FAUN HK 35 - Wundel

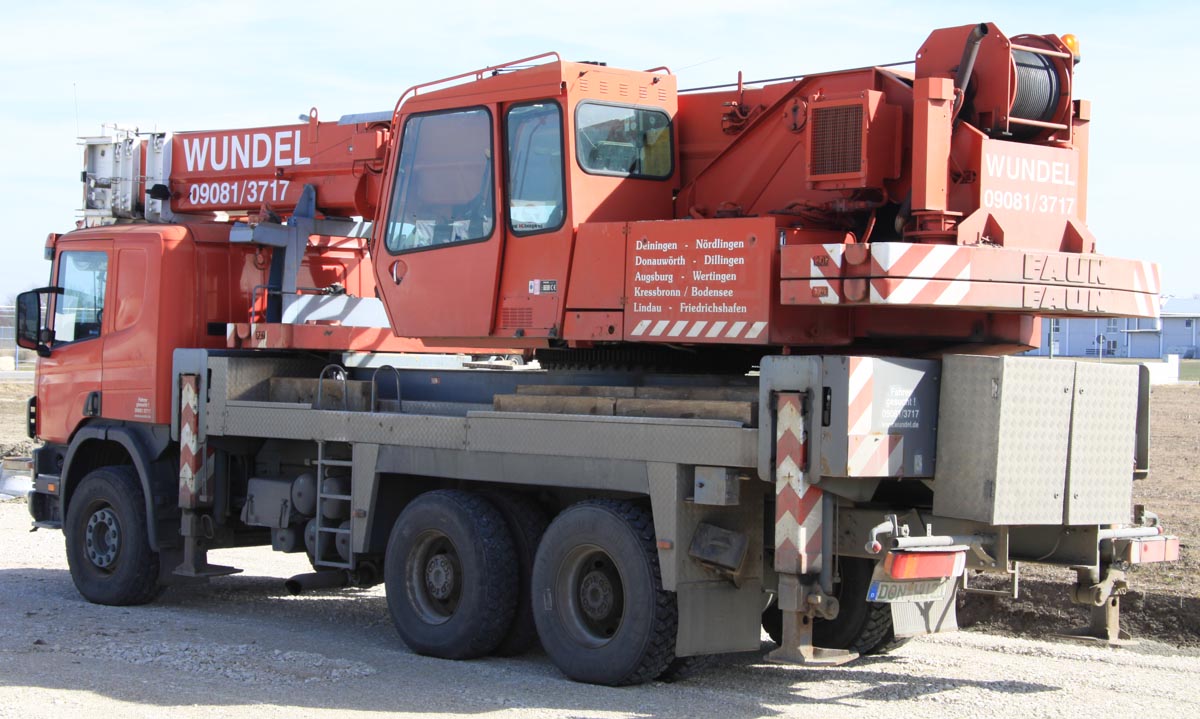

A FAUN HK 35 of Wundel, location Donauwörth (DE), parked on the yard. It is a 35 tonne crane with year of manufacture 1999.

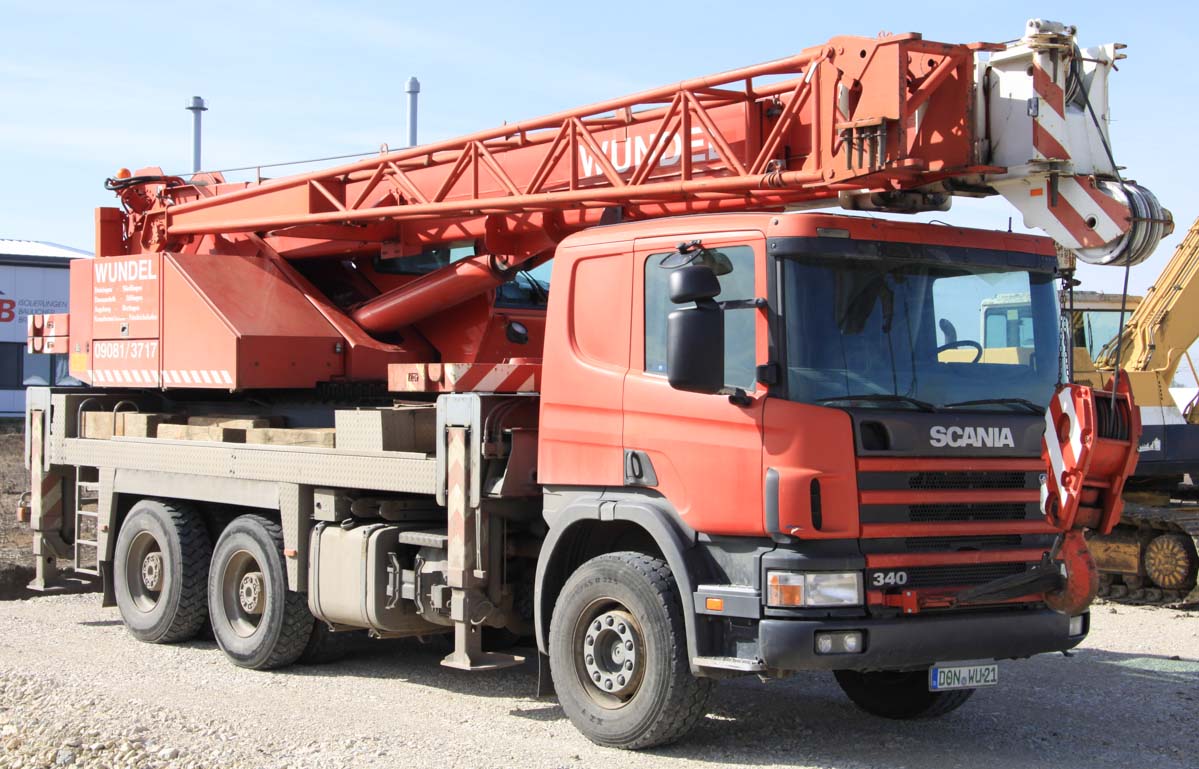

The crane is mounted on a 3 axle Scania 114G 340 undercarriage. It was also possible to put the crane on other carriers. The crane weights about 32 tonnes.

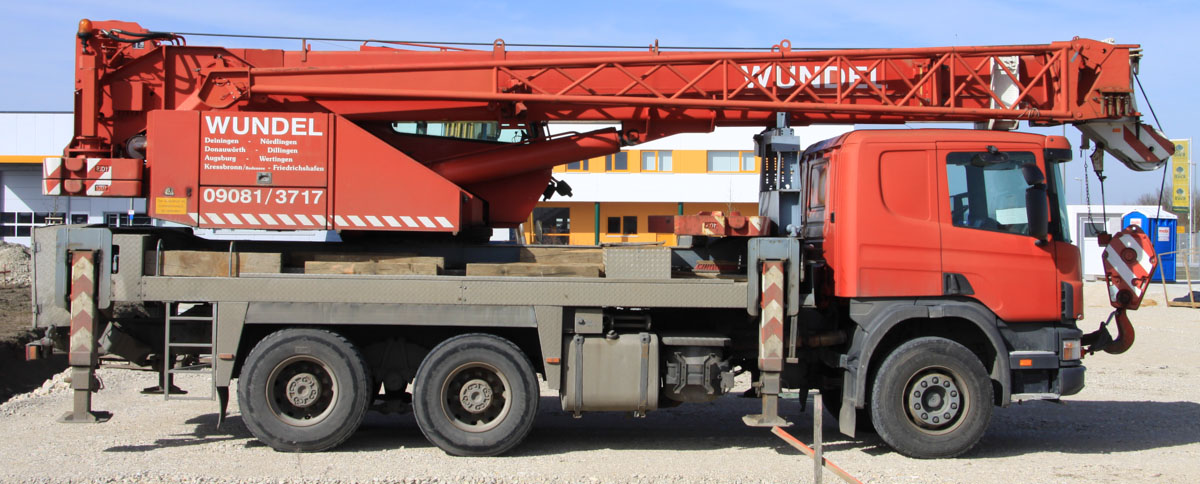

The crane is about 9.94 meters long and 3.9 meters heigh.

The outriggerbase of the crane measures 5.74 x 6.14 meters, or half 5.74 x 4.18 meters.

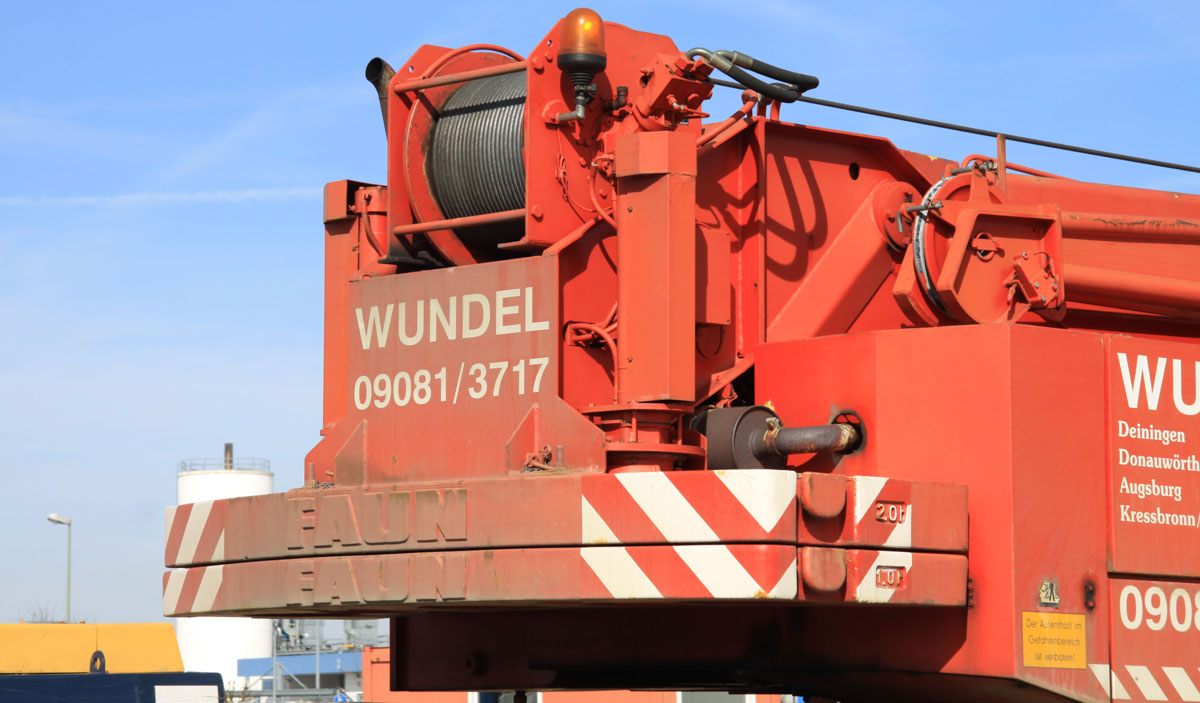

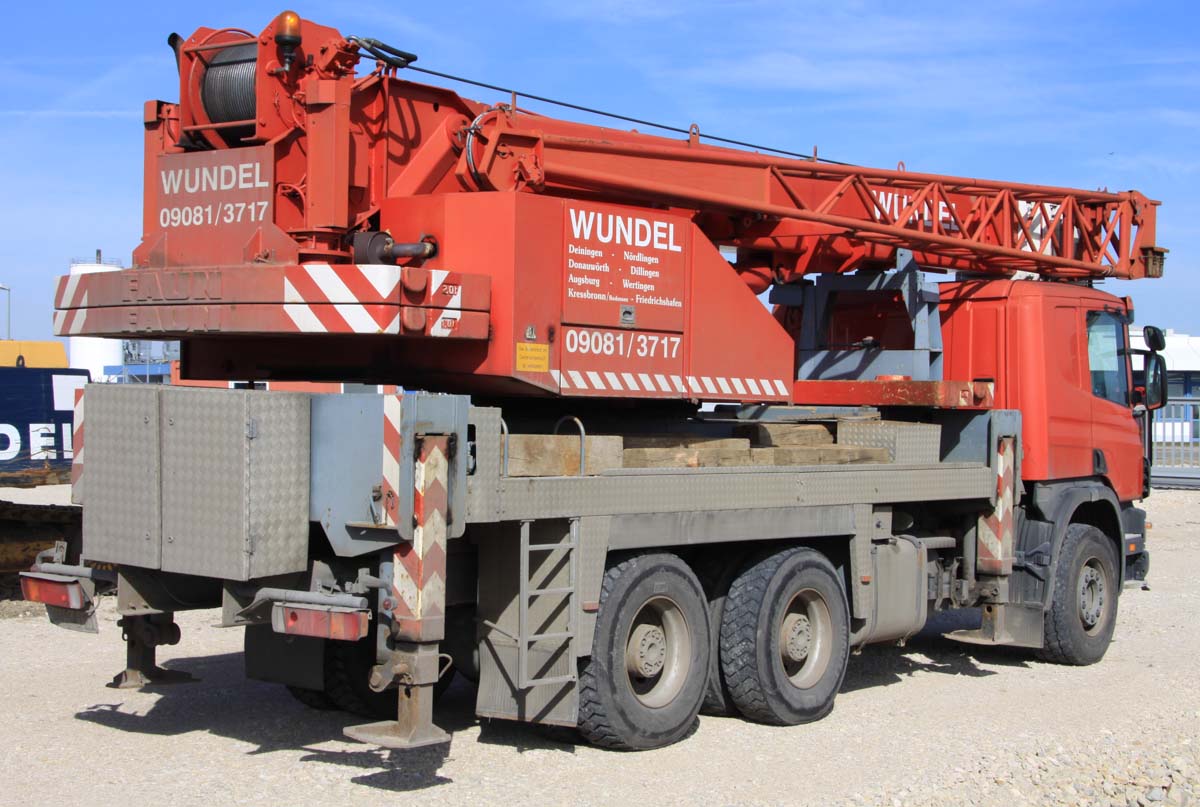

The superstructure is powered by a Daimler-Benz OM 364 LA with 113 hp. At the rear of the crane is in total 3 tonnes of counterweight mounted.

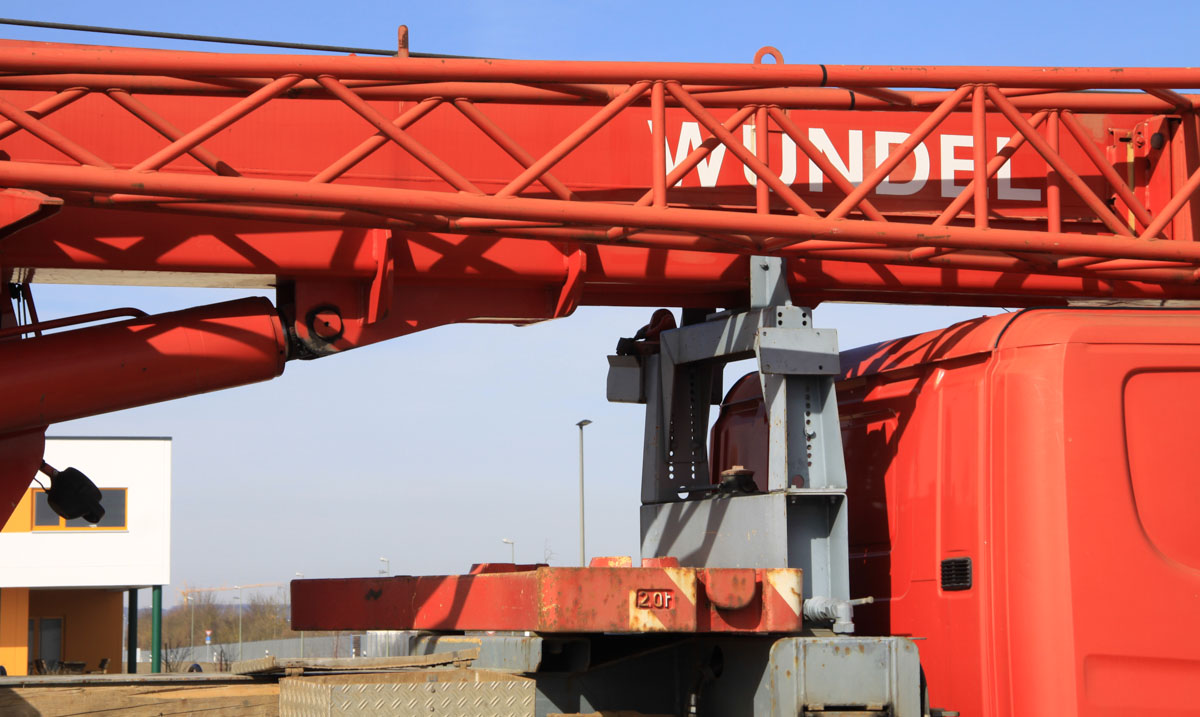

On the crane carrier is anoter 2 tonne slab taken, a 500 kg slab is missing to complete the 5.5 tonnes of counterweight. The counterweight has a tailswing of 3.2 meters.

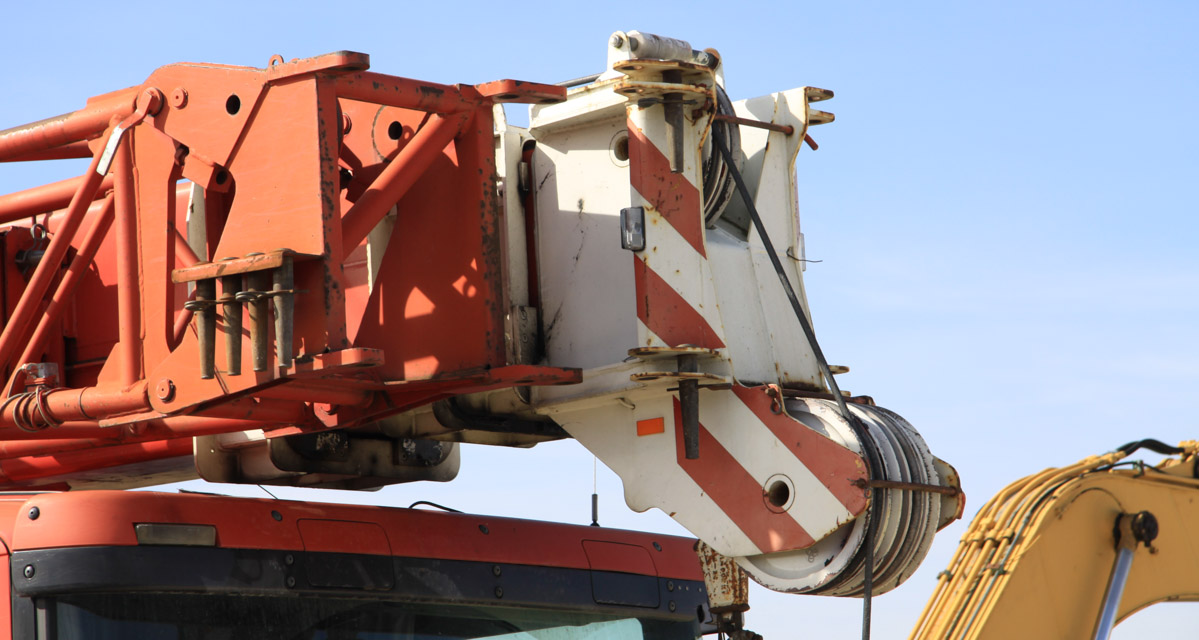

The boom has a 8.1 meter base lenght and extends 3x to a 25.3 meter length. With a single folding jib of 8 meters is a hook height of 32 meters reached.
