FAUN ATF 30-2 - Reiner Breuer

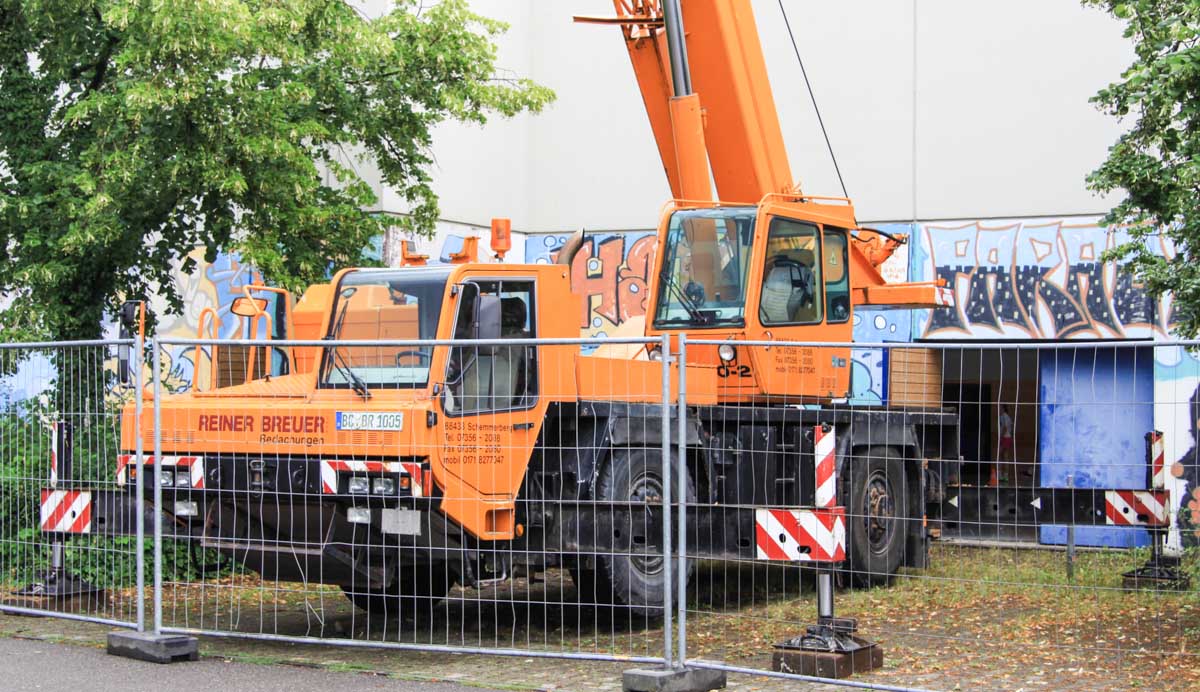

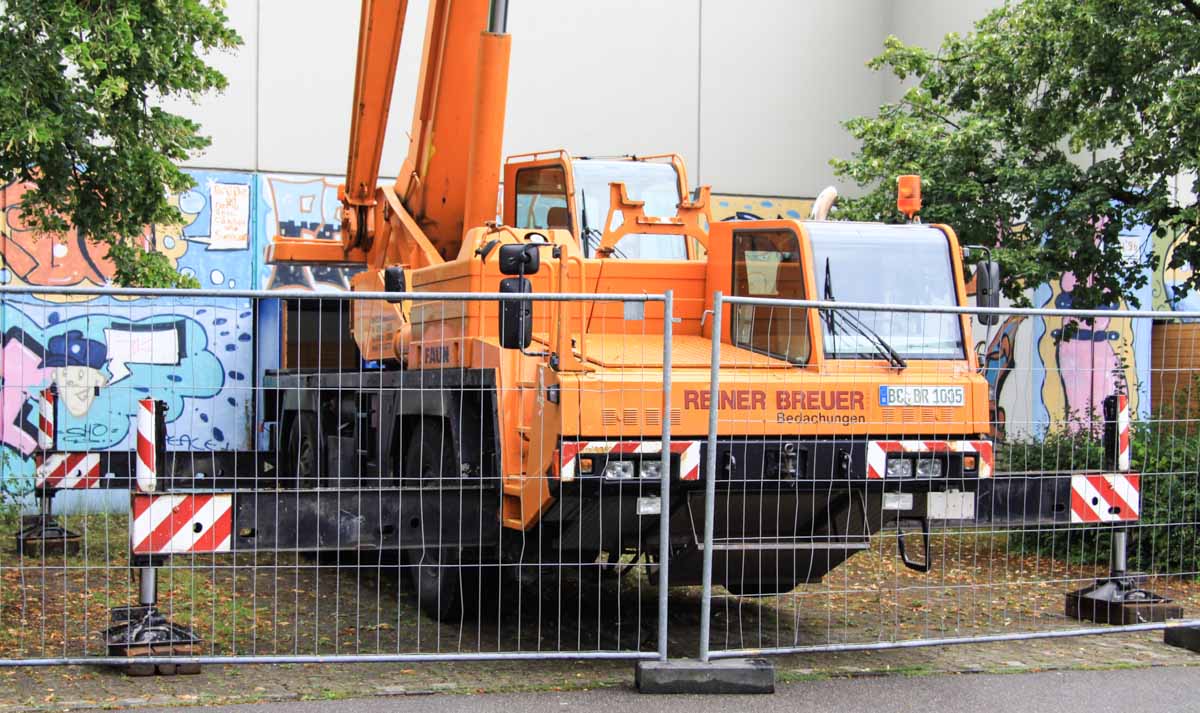

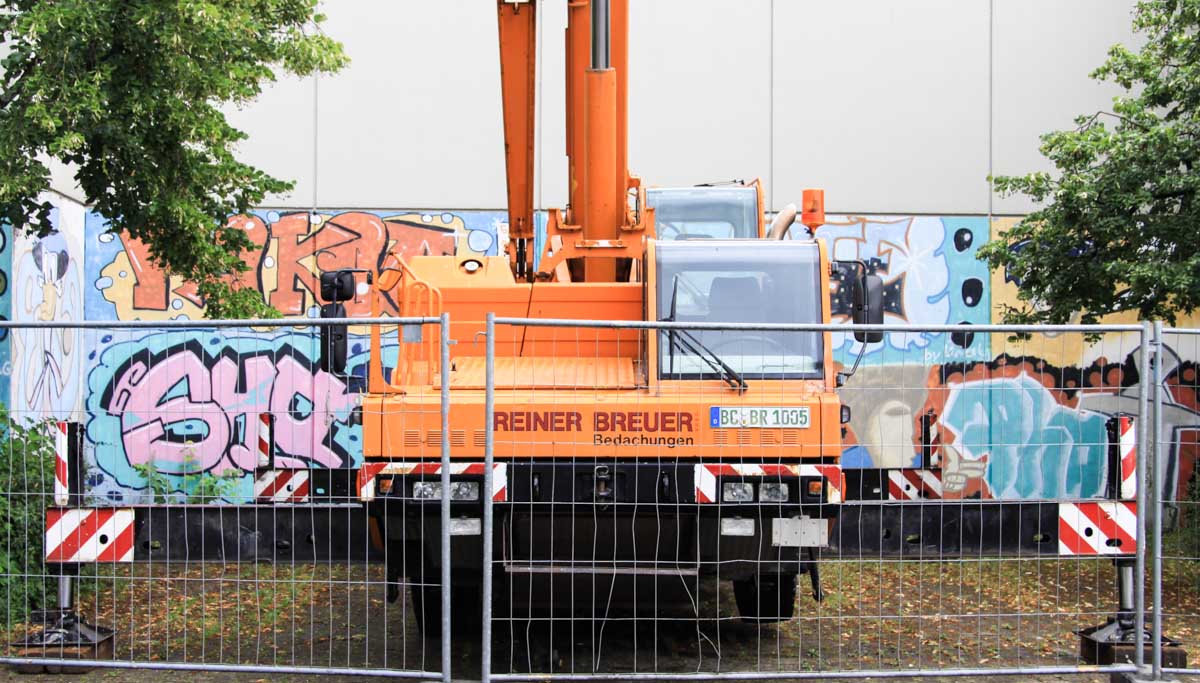

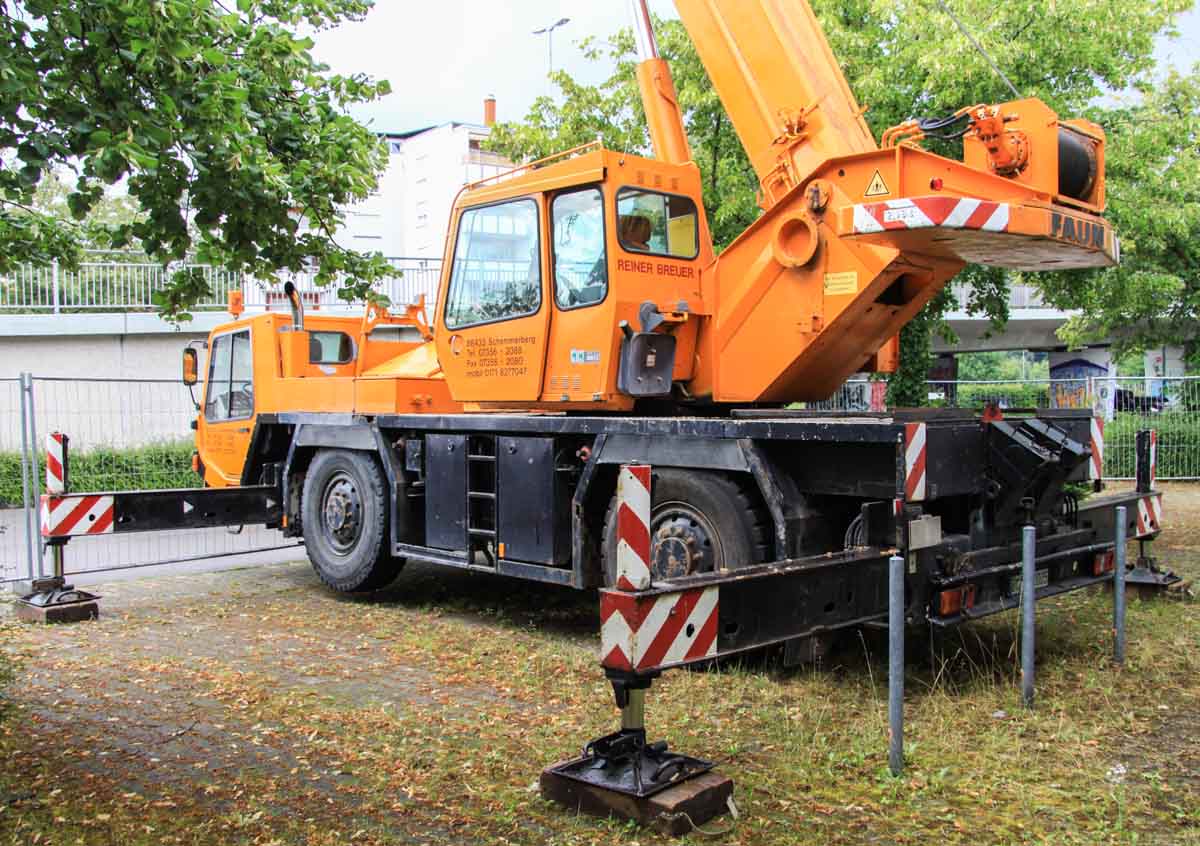

A FAUN ATF 30-2 of Reiner Breuer Bedachungen from Schemmerberg (DE) on a construction site in Biberach an der Riss (DE).

It is a 30 tonne crane on a 2 axle undercarriage. Packed is the crane 9.8 meters long, 2.5 meters wide and 3.5 meters high. The transport mass is 24 tonnes.

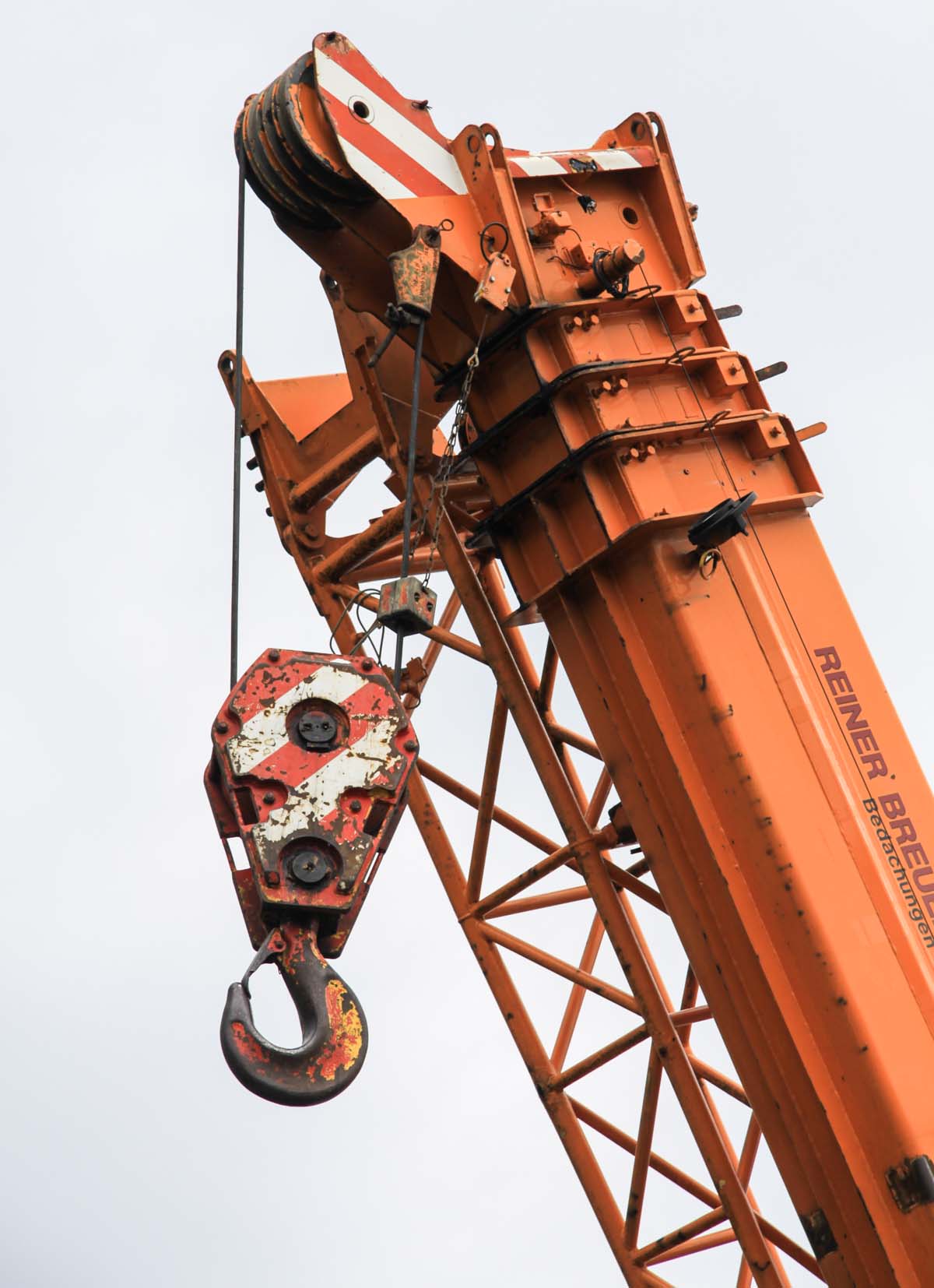

The 4-part main boom has a 8.1 meter base length and a maximum length of 25.3 meters. An 8-meter long folding jib makes the total boom length 33.14 meters and gives a maximum hook height of 33 meters. The folding jib is mountable under 0, 15 or 30 degrees onto the main boom.

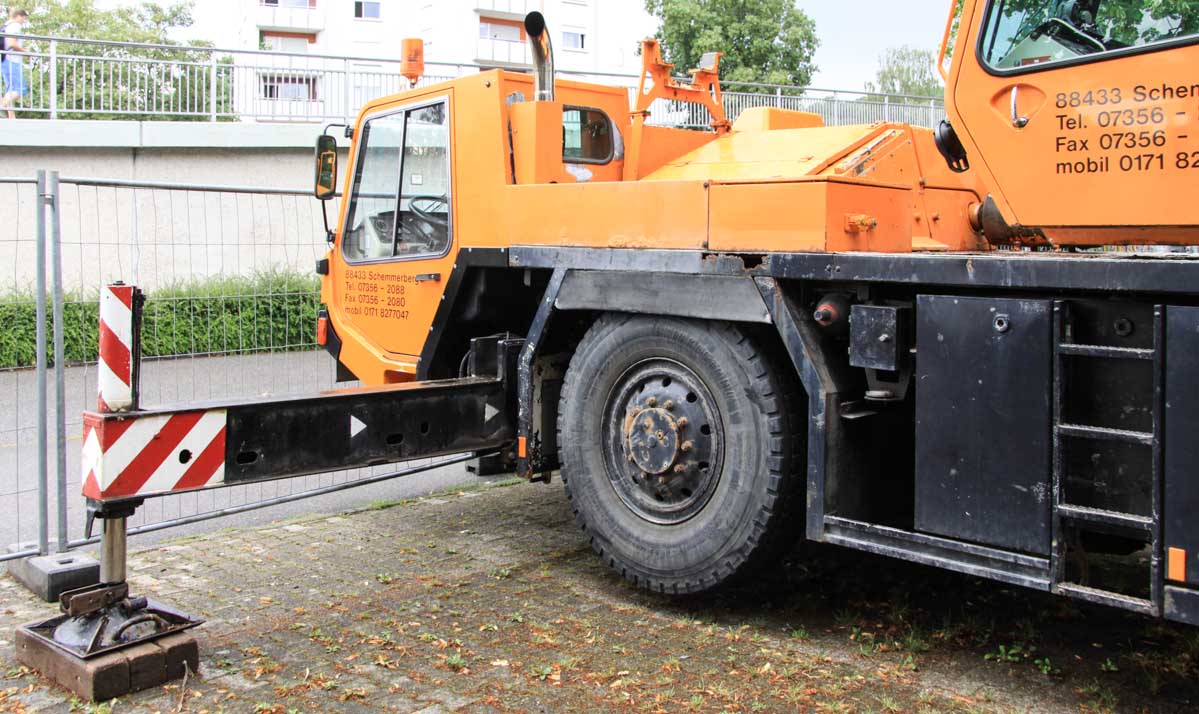

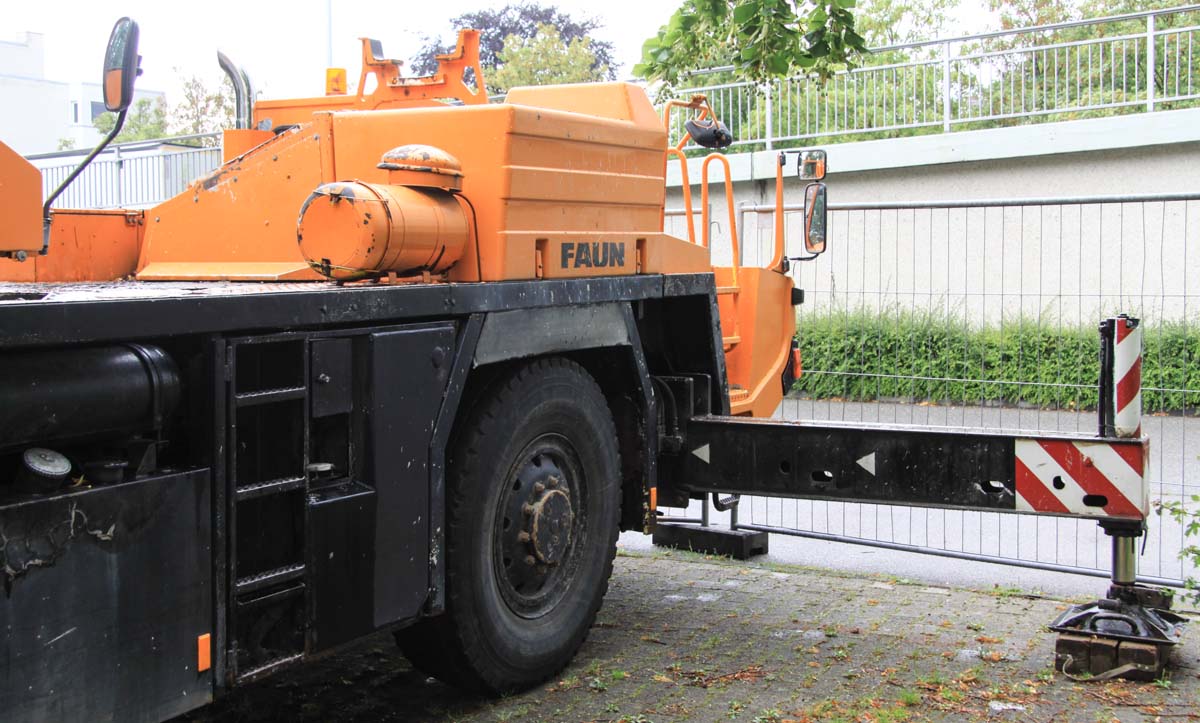

The outrigger base measures 6.35 x 6.28 meters, or half 6.35 x 4,7 meters.

The total counterweight weights 2.19 tonnes and has a 3.45 meter tailswing.

The crane's year of manufacture is 1994.

The crane is powered by a Mercedes-Benz OM 401 LA, a 272 hp diesel engine. Both axles are driven and steerable. For the crane operation are two hydraulic pumps driven by the diesel engine.

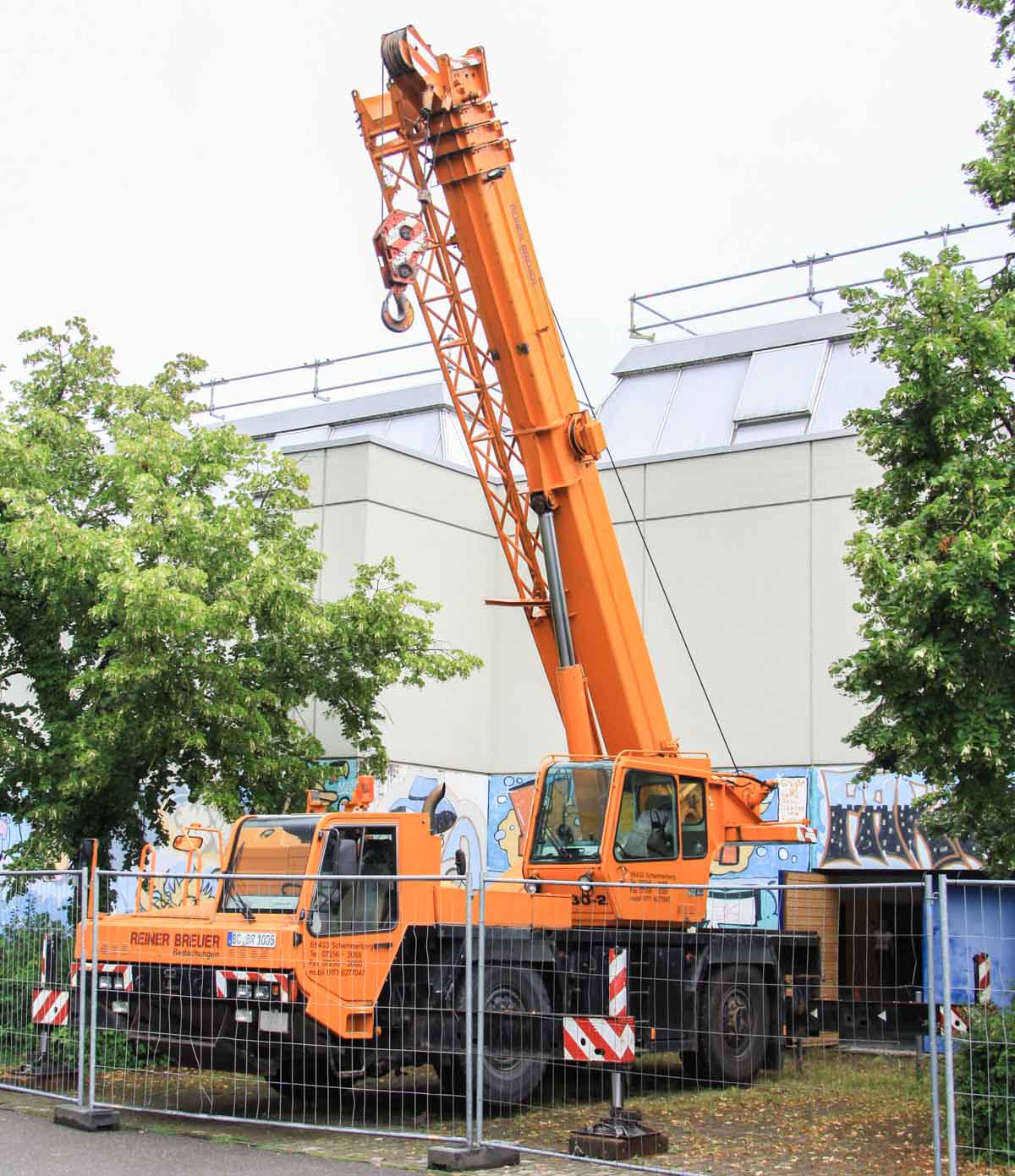

The crane was used for some lifting work for the renewal of a roof on a sports hal.
