Coles Hydra Husky 36/40TSC

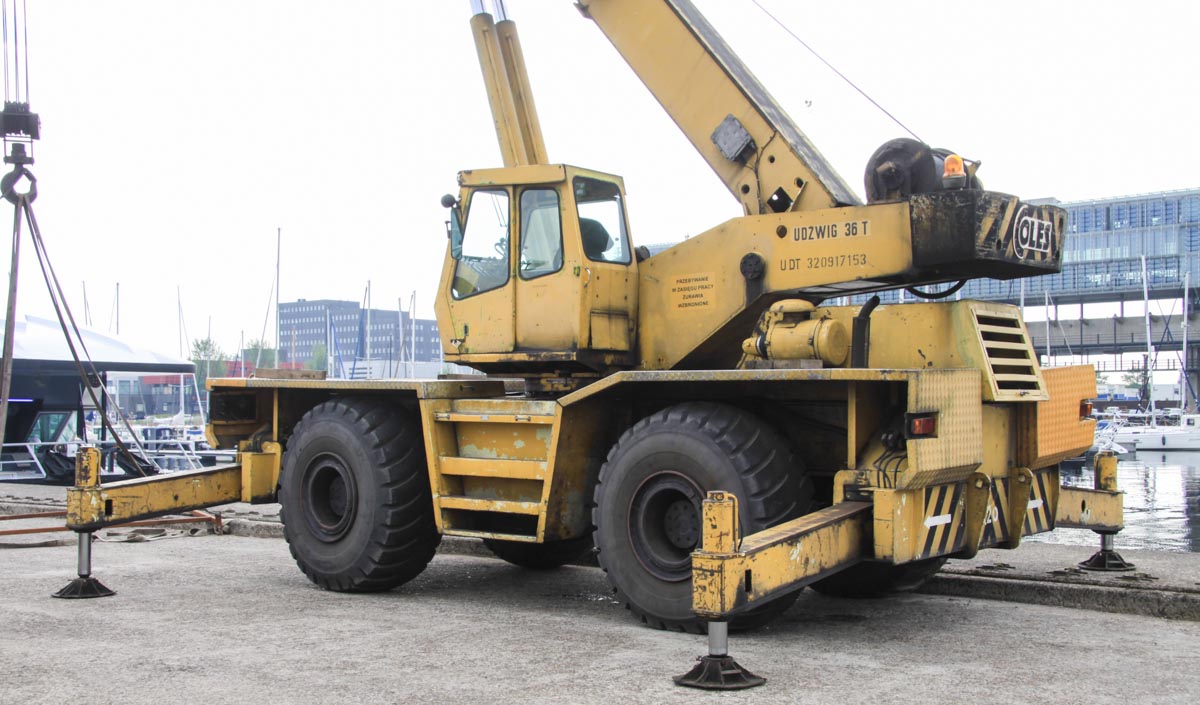

This Coles Hydra Huska 36/40TSC stood on a ship yard in Amsterdam-Noord (NL), it is a 36 tonne crane with year of manufacture 1978.

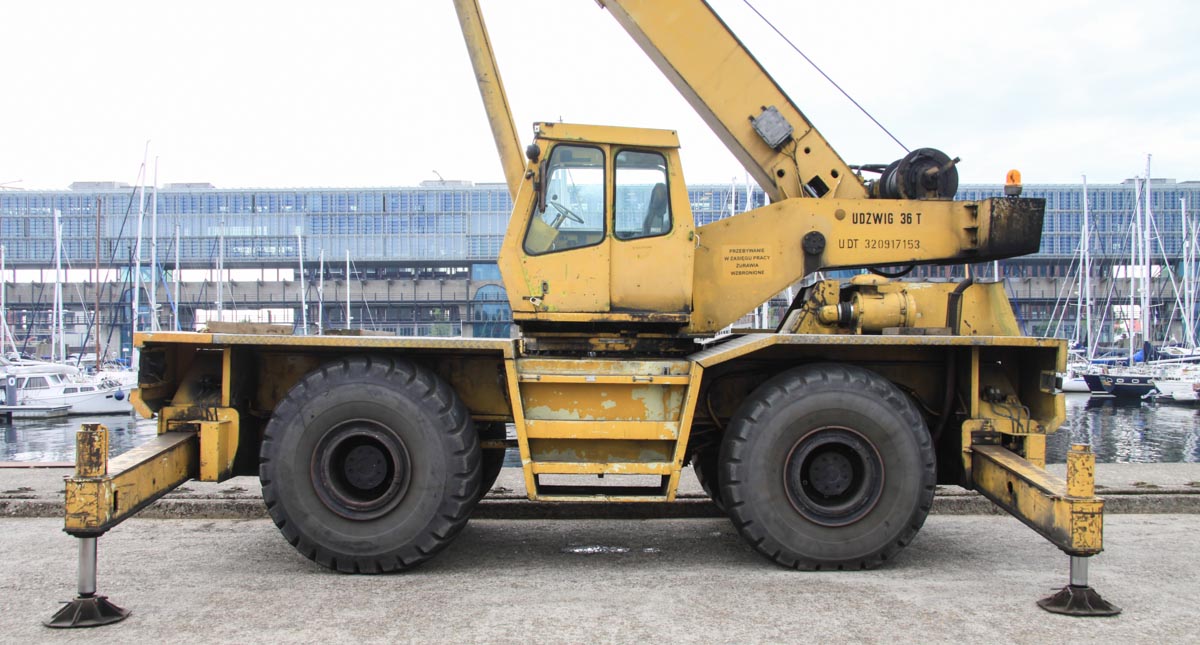

The outrigger base measures 6.75 x 6.1 meters.

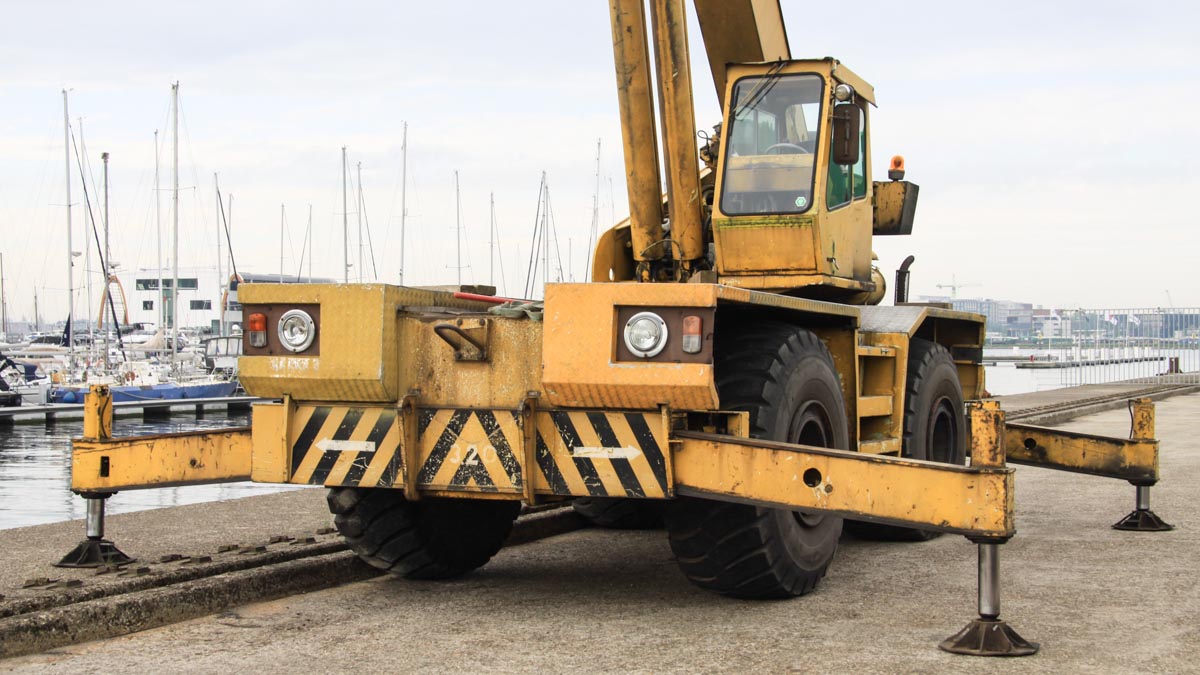

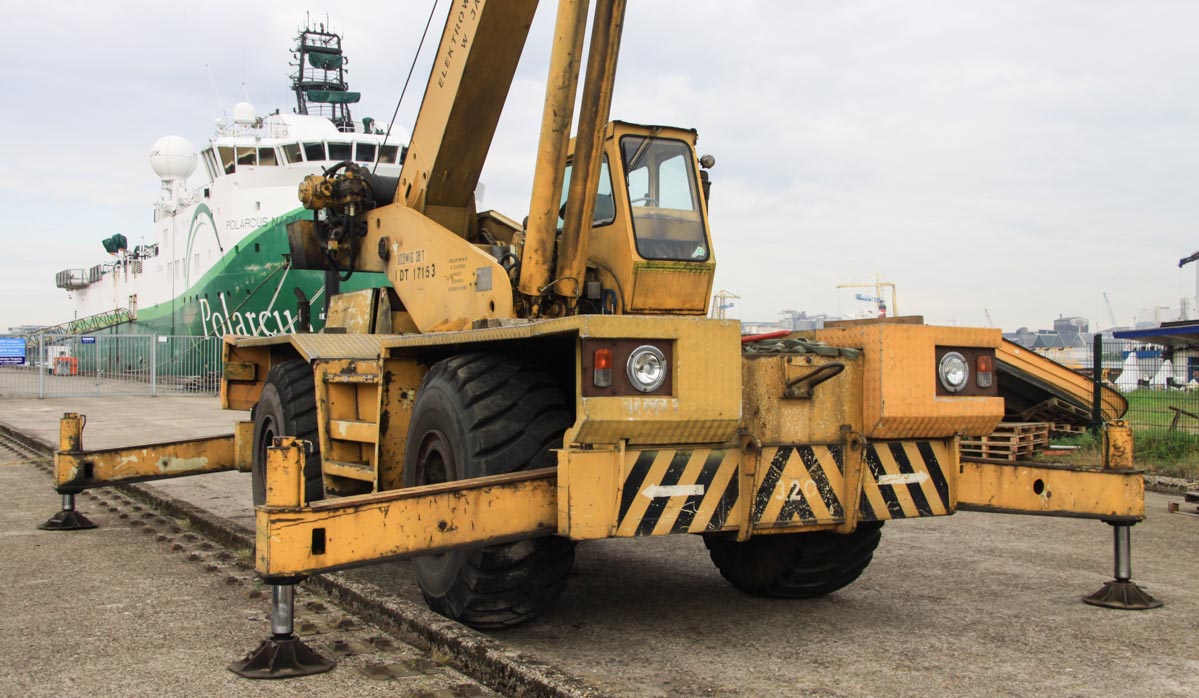

This crane has both axles driven by the 200 hp engine, all wheels are steerable. The maximum travel speed is 32 km/h.

Packed is the crane 13.1 meters long, 3.2 meters wide and 4 meters high. The crane weights around 37.5 tonnes.

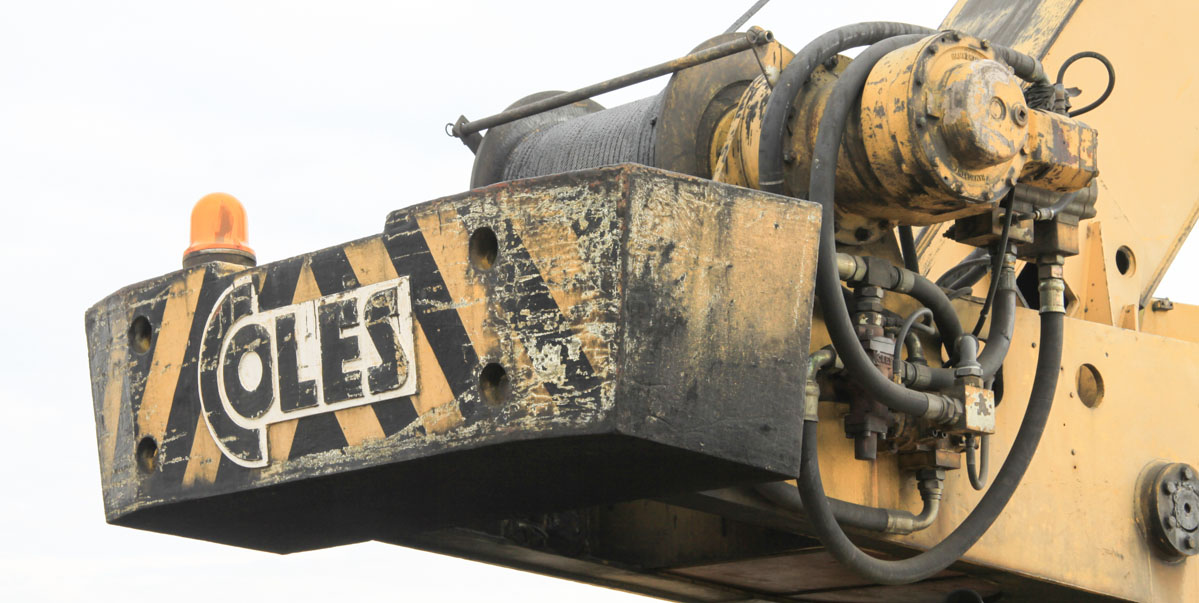

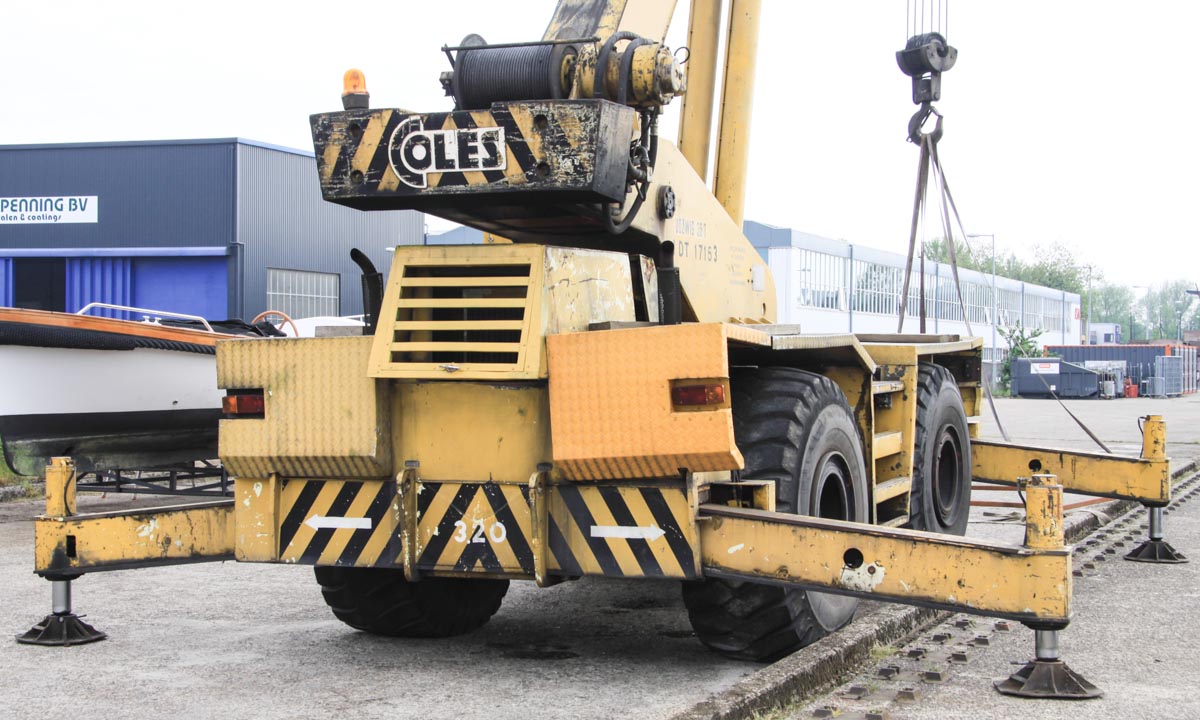

The counterweight has a 3.95 meter tailswing.

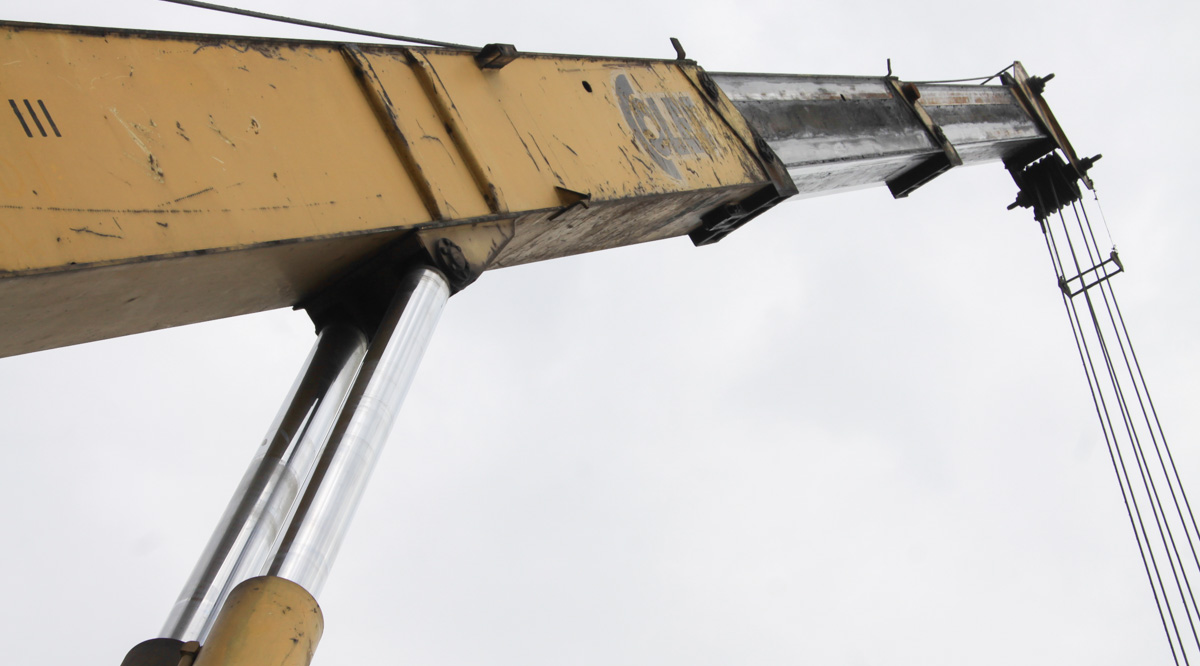

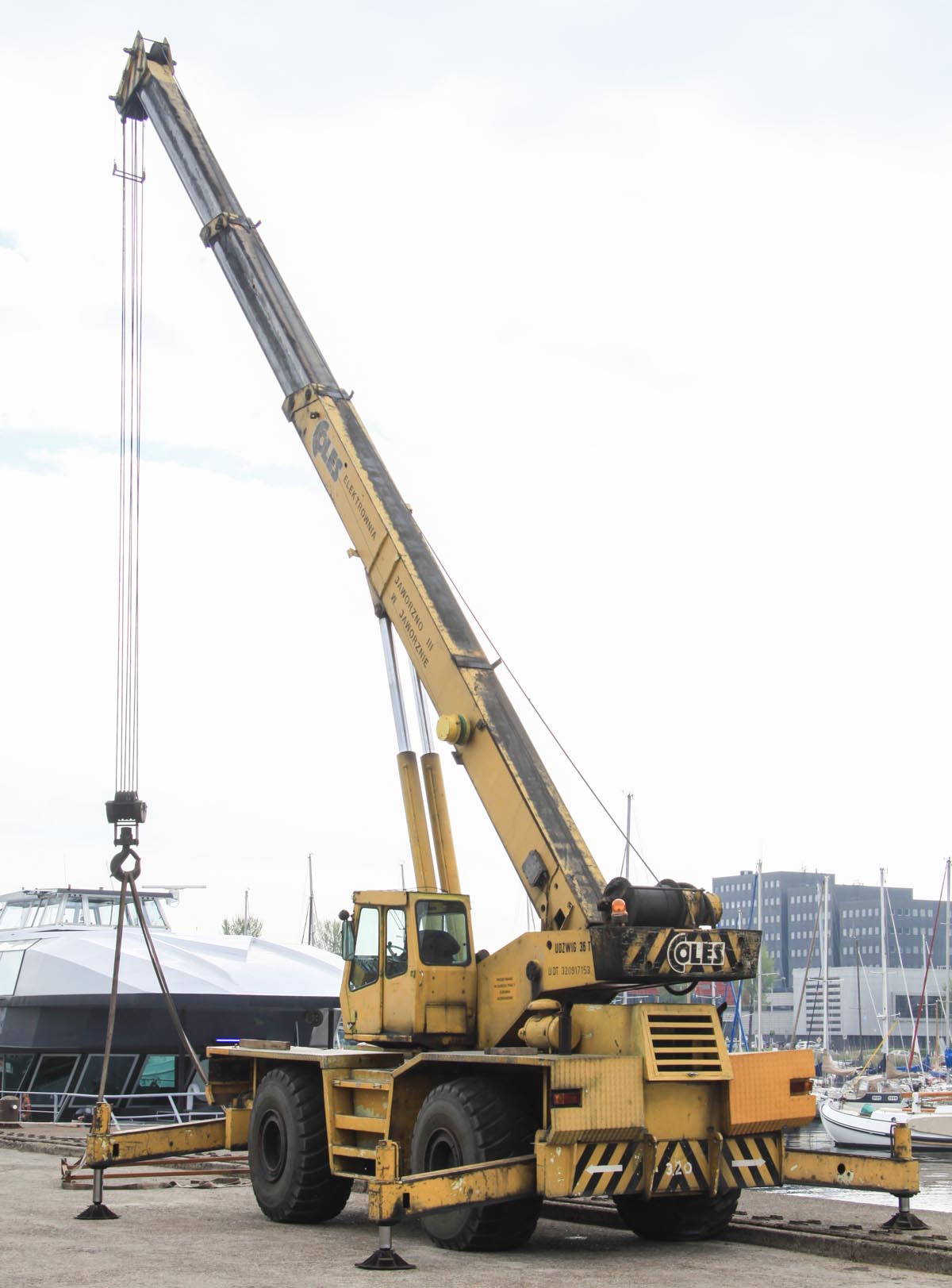

This crane has the 3 part main boom with a base length of 10.45 meters and a maximum length of 24.47 meters. The boom can be extended with a 10 meter fixed jib. Optionally a 4 part main boom with a maximum length of 31.7 meters was available.

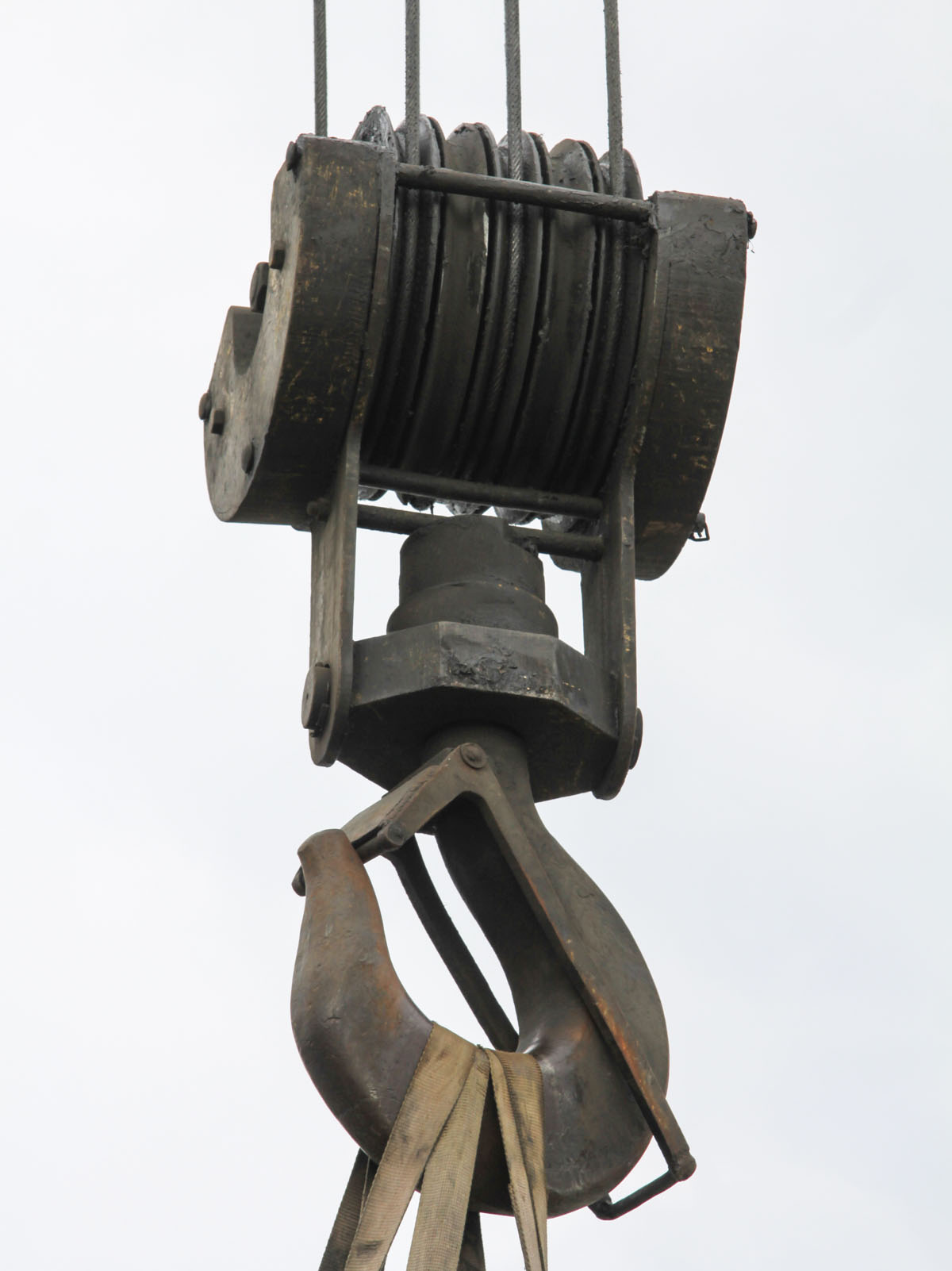

Closing with a detail of the 5 sheave hook, that can be used for loads up to 36 tonnes.
